Description

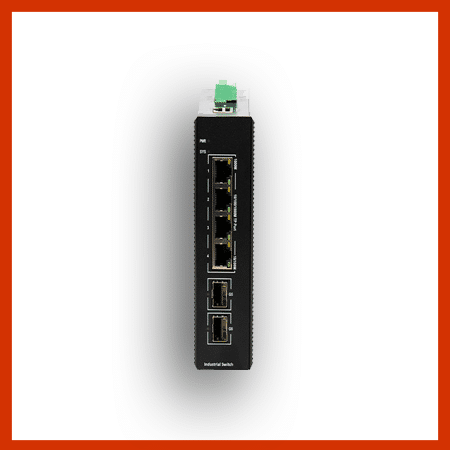

BDCOM IES200-V25-2S4T
The reliable industrial design of IES200-V25 series such as electromagnetic compatibility, anti-vibration and anti-shock capability, and IP40 protection, can be widely used in energy, transportation, industrial production, environmental protection, military industries.
| Gigabit Interface | |
| RJ45 | 4 |
| SFP | 2 |
| Console (RJ45) | 1 |
| Backplane (Gbps) | 56 |
| Forwarding rate (Mpps) | 9 |
| Chassis | |
| Dimensions (WxDxH)(mm) | 145x108x40 |
| Weight (KG)(empty) | 0.78 |
| Package | |
| Dimensions (WxDxH)(mm) | 175*130*55 |
| Weight(KG) | 1.3 |
| Power consumption | |
| no-load | <12W |
| full-load | 18W |
| Power supply | Dual DC 12~ 55V |
| Total output BTU (1000BTU/H=293W) | 61.43 |
| MTBF(H) | >800,000 |
| Forwarding mode | Store-forward |
| Flash (MB) | 16 |
| DRAM (MB) | 128 |
| MAC | 8K |
| Buffer size(Mb) | 4 |
| Jumbo frame | 9K |
| Total SVI | 10 |
