Description
| Hardware Specifications | |
|---|---|
| Hardware Version | 2 |
| Copper Ports | 48 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| SFP/mini-GBIC Slots | 4 100/1000BASE-X SFP interfaces, |
| Console | 1 RS232-to-RJ45 serial port (115200, 8, N, 1) |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 104Gbps / non-blocking |
| Switch Throughput@64bytes | 77.38Mpps @64bytes |
| Address Table | 16K entries |
| Shared Data Buffer | 12Mbit SRAM packet buffer |
| Flow Control | IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
| Jumbo Frame | 10K bytes |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
| LED | System: PWR(Power) (Green) 10/100/1000T RJ45 Interfaces (Port 1 to Port 48): 1000Mbps, LNK/ACT (Green) 10/100Mbps, LNK/ACT (Orange) 100/1000Mbps SFP Interfaces (Port 49 to Port 52): 1000Mbps, LNK/ACT (Green) 100Mbps, LNK/ACT (Orange) |
| Thermal Fan | Fanless design |
| Power Requirements | AC 100~240V, 50/60Hz, auto-sensing |
| ESD Protection | 6KV DC |
| Power Consumption / Dissipation | 37.9 watts / 129.239 BTU |
| Dimensions (W x D x H) | 440 x 330 x 44 mm, 1U height |
| Weight | 4.0 kg |
| Enclosure | Metal |
| Layer 2 Functions | |
| Port Mirroring | TX / RX / Both Many-to-1 monitor |
| Security | IEEE 802.1X port-based authentication Built-in RADIUS client to co-operate with RADIUS server RADIUS / TACACS+ authentication IP-MAC port binding MAC filtering Static MAC address DHCP snooping and DHCP Option82 STP BPDU guard, BPDU filtering and BPDU forwarding DoS attack prevention ARP inspection IP source guard Storm control support – Broadcast / unknown unicast / unknown multicast |
| VLAN | 802.1Q tagged-based VLAN Up to 256 VLAN groups, out of 4094 VLAN IDs 802.1ad Q-in-Q tunneling (VLAN stacking) Voice VLAN Protocol VLAN Private VLAN (Protected port) GVRP Management VLAN |
| Link Aggregation | IEEE 802.3ad LACP and static trunk Supports 8 trunk groups with each having 8 ports |
| Spanning Tree Protocol | STP, IEEE 802.1D Spanning Tree Protocol RSTP, IEEE 802.1w Rapid Spanning Tree Protocol MSTP, IEEE 802.1s Multiple Spanning Tree Protocol STP BPDU Guard, BPDU Filtering and BPDU Forwarding |
| IGMP Snooping | IGMP (v2/v3) snooping IGMP querier Up to 256 multicast groups |
| MLD Snooping | IPv6 MLD (v1 / v2) snooping, up to 256 multicast groups |
| Access Control List | IPv4/IPv6 IP-based ACL / MAC-based ACL IPv4/IPv6 IP-based ACE / MAC-based ACE |
| QoS | 8 mapping IDs to 8 level priority queues – Port number – 802.1p priority – DSCP / IP precedence of IPv4 / IPv6 packets Traffic classification based, strict priority and WRR Ingress / Egress Rate Limit per port bandwidth control |
| Management Functions | |
| Basic Management Interfaces | Web browser / Telnet / SNMP v1, v2c, v3 Firmware upgrade via HTTP / TFTP protocol through Ethernet network Configuration upload / download through HTTP / TFTP Remote / Local Syslog System log LLDP protocol SNTP PLANET Smart Discovery Utility |
| Secure Management Interfaces | SSH, SSL, SNMPv3 |
| SNMP MIBs | RFC 3635 Ethernet-like MIB RFC 2863 Interface Group MIB RFC 2819 RMON (1, 2, 3, 9) RFC 1493 Bridge MIB |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX / 100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1X Port Authentication Network Control IEEE 802.1ab LLDP RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP version 1 RFC 2236 IGMP version 2 RFC 3376 IGMP version 3 RFC 2710 MLD version 1 RFC 3810 MLD version 2 |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -20 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
High Performance

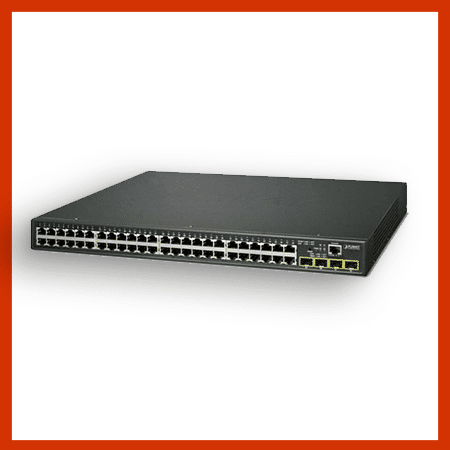

The GS-4210-48T4S provides 48 10/100/1000BASE-T Gigabit Ethernet RJ45 ports and 4 additional 100/1000BASE-X SFP slots. It boasts a high-performance switch architecture that is capable of providing the non-blocking switch fabric and wire-speed throughput as high as 104Gbps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands.
Fanless Design
Adopting the latest chip process and green technology, the GS-4210-48T4S successfully reduces substantial power consumption with the fanless and noiseless design collocating with the effective cooler. Therefore, the GS-4210-48T4S is able to operate stably and quietly in any environment without affecting its performance.
IPv6 / IPv4 Dual Stack
By supporting both IPv6 and IPv4 protocols, the GS-4210-48T4S helps the SMBs to step in the IPv6 era with the lowest investment as network facilities do not need to be fully replaced. Thus, the IPv4 network can be easily upgraded by ISPs to the IPv6 FTTx edge network.
Robust Layer 2 Features
The GS-4210-48T4S can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN and Q-in-Q VLAN, Multiple Spanning Tree protocol (MSTP), Loop and BPDU Guard, and IGMP Snooping. Via the aggregation of supporting ports, the GS-4210-48T4S allows the operation of a high-speed trunk to combine with multiple ports such as a 16Gbps fat pipe and supports fail-over as well.
Efficient Traffic Control
The GS-4210-48T4S is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice, and video solutions. The functionality includes broadcast / multicast storm control, per port bandwidth control, IP DSCP QoS priority and remarking. It guarantees the best performance of VoIP and video stream transmission, and empowers the enterprises to take full advantage of the limited network resources.
Enhanced and Secure Management
For efficient management, the GS-4210-48T4S is equipped with Web, Telnet and SNMP management interfaces. With the built-in Web-based management interface, the GS-4210-48T4S offers an easy-to-use, platform-independent management and configuration facility. By supporting standard Simple Network Management Protocol (SNMP), the switch can be managed via any standard management software. For text-based management, the switch can be accessed via Telnet port. Moreover, the GS-4210-48T4S offers secure remote management by supporting SSH and SSL connections which encrypt the packet content at each session.
Powerful Security
PLANET GS-4210-48T4S offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X port-based authentication, which can be deployed with RADIUS to ensure the port level security and block illegal users. With the Protected Port function, communication between edge ports can be prevented to guarantee user privacy. Port Security allows to limit the number of users on a given port. The network administrators can now construct highly-secured corporate networks with considerably less time and effort than before.
Flexible Extension Solution
The four mini-GBIC SFP slots built in the GS-4210-48T4S support dual speed as it features 100BASE-FX and 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber-optic modules, meaning the administrator can flexibly choose the suitable SFP transceiver according to not only the transmission distance, but also the transmission speed required. The distance can be extended from 550 meters to 2km (multi-mode fiber) and up to above 10/20/30/40/50/70/120 kilometers (single-mode fiber or WDM fiber). It is well suited for applications within the enterprise data centers and distributions.
Green Networking
In line with the energy-saving trend worldwide, the GS-4210-48T4S adopts the new-generation green technology which brings both benefits of energy saving and Gigabit performance. The new engine provides up to 60% less energy consumption without reducing the performance, and particularly it offers flexible power-saving mode to meet various demands.
