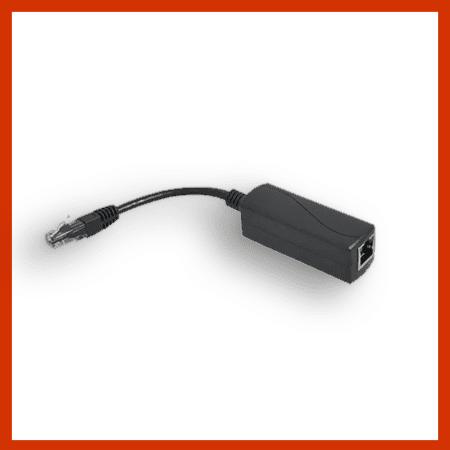

The PoE Converter enables longer cable runs due to a more efficient power delivery – so your products can get the power they require even when they are located far from the 802.3af/at switch.
Features l IEEE802.3, IEEE 802.3u, I EE802.3ab, IEEE802.3af, IEEE802.3at.
Convert the Standard 802. af/at PoE to proprietary 24V PoE, Up to 24V 0.5A output.
Works with 10/100/1000 Mbps ports to deliver high throughput speeds over its wired connection.
Specification
| Power over Ethernet | |
| PoE Interfaces | 1 x RJ-45 Connector for 802.3af/at Power input 1 x RJ-45 Connector for 24V Power output |
| Input PoE Standard | IEEE802.3af, IEEE802.3at |
| Input PoE Voltage | 36~57V C |
| Input PoE Pin Assignment | V+ (RJ45 Pin3,6), V- (RJ45 Pin 1,2) or V+ (RJ45 Pin4, 5), V- (RJ45 Pin 7,8) |
| Output PoE Wattage | 12W |
| Output PoE Voltage | 24VDC |
| Output PoE Pin Assignment | V+ (RJ45 Pin4,5), V- (RJ45 Pin 7,8) |
| Physical | |
| Operating Temperature | 0 to 40℃ |
| Storage Temperature | -10 to 70℃ |
| Operating Humidity | 5 to 95% Non-condensing |
| EMC Safety | FCC, CE, RoHS |
