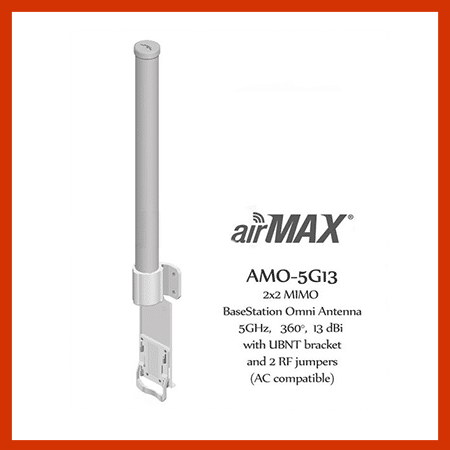

AirMax Omni 5GHz 13dBi

Login to see your best prices

AirMax Omni is a Carrier Class 2×2 Dual
Polarity MIMO omnidirectional antenna that
was designed to seamlessly integrate with
Rocket M radios (Rocket M sold separately).

In stock

SKU: amo-5g13 Category:

Description

Antenna Characteristics

AMO-2G10                               AMO-2G13                              AMO-5G10                               AMO-5G13
Frequency Range

2.35 – 2.55  GHz

5.45 – 5.85  GHz*

Gain

10 dBi

13 dBi

10 dBi

13 dBi

Elevation Beamwidth

12 deg

7 deg

12 deg

7 deg

Max VSWR

1.7:1

1.6:1

1.5:1

Downtilt

4 deg

2 deg

4 deg

2 deg

Dimensions** (l x w x h) 217 x 123 x 1011 mm 217 x 123 x 1386 mm 158 x 98 x 579 mm 158 x 98 x 834 mm
Weight**

2.1 kg

2.4 kg

0.68 kg

0.82 kg

Wind Survivability

125 mph

100 mph

125 mph

Wind Loading 28 lb @ 100 mph 38 lb @ 100 mph 8 lb @ 100 mph 10 lb @ 100 mph
Polarization

Dual Linear

Cross-pol Isolation

25 dB min

ETSI Specification

EN 302 326 DN2

Mounting Universal pole mount, Rocket M bracket, and weatherproof RF jumpers  included

Additional information

Weight 2 kg
Dimensions 4 × 34 × 6 cm
