Description

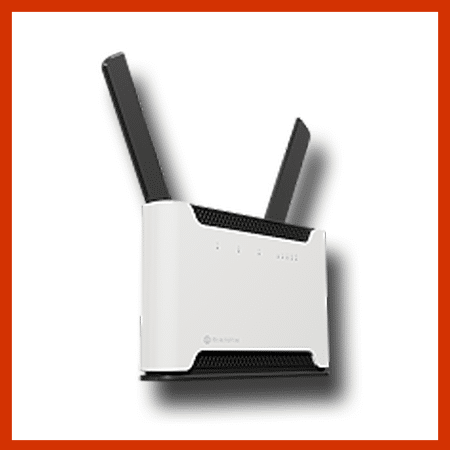

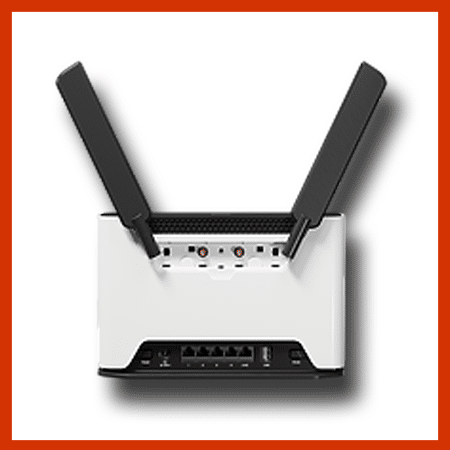

Chateau LTE6 ax

Are you tired of those suspicious, low-quality default routers from your service providers? So many households are switching to mobile internet, but those default routers can really ruin the experience. Not only do they lack features, speed, and power, the designs can get weird with all the black boxes and spiky antennas. That’s why we decided to take everything we’ve learned over the last 20 years of networking excellence and create a single device that will make most households happy: the MikroTik Chateau.

It features a purposeful balance of extensive features, accessible pricing, and classy design that will fit right in
Chateau is a high-speed, dual-band home access point that adapts to your needs. It features a powerful quad- core ARM CPU, a fast, reliable, and responsive CAT6 LTE modem for excellent mobile connectivity, and the most advanced networking software on the market – RouterOS. But don’t worry – it can be as simple or as complex as you want. Chateau is designed to serve the most diverse user groups: IT professionals can push it to its limits, regular households can plug it in and forget it exists. With Chateau, you will always have options.

Compared to the regular Chateau LTE6, this version features a supercharged quad-core ARM CPU running at 1.8 GHz. It can handle even the most complex tasks without breaking a sweat. You can run complex firewall rules, provide encrypted VPN tunnels for an entire office, run the most demanding container apps right on your router, and more! The addition of 2.5 Gigabit Ethernet gives you even more options. You can use the ultra- fast port to connect extra devices – like a home media server – or use it as your primary ISP connection while keeping the LTE modem for backup.

Double click to watch video

Remove the bottleneck in your mobile setup



Do you dream of escaping the hustle and bustle of the city and moving to the countryside? Perhaps you’ve already made the move but are frustrated by the slow internet speeds. Fear not, because Chateau is here to solve all your connectivity problems.

Many rural households are limited by cheap, featureless LTE routers that simply can’t handle the demands of modern internet usage. That’s where Chateau comes in. When the leading mobile operator in Latvia – LMT – replaced their previous client routers with Chateau devices, customer satisfaction went through the roof! Same LTE towers, same data plans, and a brand new Chateau – just like that! What is the point of having brand new phones, excellent LTE coverage, high-end laptops, and so on… if your old router is the bottleneck?

That’s right – wireless signal is now stronger than ever. Due to the Gen 6 802.11ax standard, we’ve seen up to 40% higher speed in the 5 GHz spectrum and up to 90% higher speed in the 2.4 GHz spectrum.

The freedom of LTE



Reach consistent speeds of up to 300 Mbps with carrier aggregation, as CAT6 allows devices to use multiple bands simultaneously. That is a huge advantage in areas with many LTE users. Chateau LTE6 provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside. Depending on the service provider, we have seen Internet speed doubling in rural areas after switching to carrier aggregation, so there is no need to wait for cable network expansions.



Perfect for all walks of life

Chateau comes with all the advanced RouterOS features, so you’re getting enterprise-level solutions with consumer-grade pricing. Run a secure VPN from the office directly to your home, enable all kinds of parental control, dive deep into specific firewall rules and IPsec hardware acceleration, configure VLANs, set up e-mail or SMS notifications… You can even automate complex trigger notifications. For example: “WARNING, WARNING! Your bandwidth has reached X amount for Y duration!” If you can imagine it – RouterOS can achieve it. However, if you don’t need all the complex stuff – Chateau can still be your best friend. In fact, this is the best choice for mobile operators that don’t want their clients to do any configuration. Chateau supports the TR-069 technology that allows creating custom remote client management options. You can have the most straightforward and basic router settings on the same web-page that you are using to pay the mobile bill. And we offer different label or printed branding options on volume orders. Furthermore, we can offer special project pricing and additional discounts for mobile operators to bring the costs down even more!

You don’t have to wait for cable network expansion to have fast and steady Internet at home. Mobile networks are great. If you’re using a Chateau.

Specifications

Details
Product code	S53UG+5HaxD2HaxD-TC&FG621-EA
Architecture	ARM 64bit
CPU	IPQ-6010
CPU core count	4
CPU nominal frequency	auto MHz
Switch chip model	IPQ-6010
RouterOS license	4
Operating System	RouterOS v7
Size of RAM	1 GB
Storage size	128 MB
Storage type	NAND
MTBF	Approximately 200’000 hours at 25C
Tested ambient temperature	-40°C to 70°C

Wireless capabilities

Details
Wireless 2.4 GHz Max data rate	574 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz	2
Wireless 2.4 GHz chip model	QCN-5022
Wireless 2.4 GHz generation	Wi-Fi 6
Wireless 5 GHz Max data rate	1200 Mbit/s
Wireless 5 GHz number of chains	2
Wireless 5 GHz standards	802.11a/n/ac/ax
Antenna gain dBi for 5 GHz	4
Wireless 5 GHz chip model	QCN-5052
Wireless 5 GHz generation	Wi-Fi 6
WiFi speed	AX1800

Mobile

Details
3G Category	R8 (42.2Mbps Downlink, 11.2Mbps Uplink)
3G bands	1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category	6 (300Mbit/s Downlink, 50Mbit/s Uplink)
MIMO DL	2×2
MIMO UL	1×1
LTE FDD bands	1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz)
LTE TDD bands	38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz)
TAC	86335904

Ethernet

Details
10/100/1000 Ethernet ports	4
Number of 2.5G Ethernet ports	1

Peripherals

Details
Number of SIM slots	1 Modem (Micro SIM)
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB type A
Max USB current (A)	1

Powering

Details
Number of DC inputs	1 (DC jack)
DC jack input Voltage	12-28 V
Max power consumption	17 W
Max power consumption without attachments	13 W
Cooling type	Passive

Certification & Approvals

Details
Certification	CE, EAC, ROHS
IP	20

Other

Details
PCB temperature monitor	Yes
Voltage Monitor	Yes
Mode button	Yes

Wireless specifications

2.4 GHz	Transmit (dBm)	Receive Sensitivity
1MBit/s		-100
11MBit/s		-94
6MBit/s	24	-96
54MBit/s	21	-80
MCS0	24	-96
MCS7	20	-75
MCS9	19	-70
MCS11	17	-67

5 GHz	Transmit (dBm)	Receive Sensitivity
6MBit/s	24	-96
54MBit/s	21	-80
MCS0	24	-96
MCS7	20	-75
MCS9	19	-70
MCS11	17	-67
