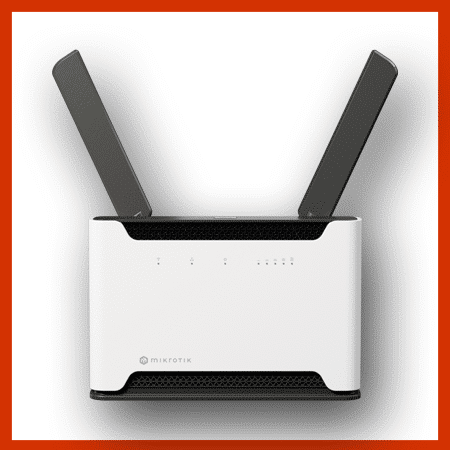

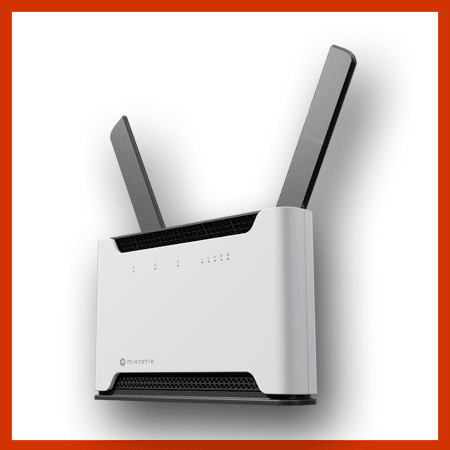

Chateau PRO ax

CAD$271.79

The Mikrotik Chateau PRO ax is A top of the line Wi-Fi 6 home access point for the advanced users – it comes with an exceptionally powerful wireless system and a matching CPU.

  • ARM64 multi-core CPU
  • High gain antennas
  • 5 GHz max Data rate 2.4 GBPS
  • 2.4 GHz max Data rate 1.15 GBPS
  • USB port for LTE Dongle.

In stock

Description

Mikrotik Chateau PRO ax

While designed with professional users in mind, the Chateau PRO ax Wi-Fi 6 home access point is engineered to squeeze out maximum performance from it’s resources. This WIFI AP router handles more traffic than ever before. All due to its unstoppable quad-core ARM CPU running at 2.2 GHz and our latest cutting-edge wireless chip, Chateau PRO ax leverages 4 spatial streams to achieve double the data rate of the usual dual-chain devices. Therefore ensuring that your network is always fast, reliable, and ready to support even the most demanding tasks.

In effect, with 5x Gigabit Ethernet ports and a USB 3.0 port, you can transform this Chateau into a home media server by plugging in an additional SSD storage. Or you could use the USB to add an LTE modem for backup WAN.

You can also utilize the USB port for an advanced container setups, bonding, or high-speed 4×4 MIMO wireless setups.Ultimately Chateau PRO ax with its increased number of radio transceivers provides significantly improved wireless coverage and beam-forming performance.

Specifications

Details
Product code H53UiG-5HaxQ2HaxQ
Architecture ARM 64bit
CPU IPQ-8072A
CPU core count 4
CPU nominal frequency 2208 MHz
Switch chip model IPQ-8072
RouterOS license 6
Operating System RouterOS v7
Size of RAM 1 GB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200’000 hours at 25C
Tested ambient temperature -40°C to 70°C

Wireless capabilities

Details
Wireless 2.4 GHz Max data rate 1148 Mbit/s
Wireless 2.4 GHz number of chains 4
Wireless 2.4 GHz standards 802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz 5
Wireless 2.4 GHz chip model QCN-5024
Wireless 2.4 GHz generation Wi-Fi 6
Wireless 5 GHz Max data rate 2400 Mbit/s
Wireless 5 GHz number of chains 4
Wireless 5 GHz standards 802.11a/n/ac/ax
Antenna gain dBi for 5 GHz 6
Wireless 5 GHz chip model QCN-5054
Wireless 5 GHz generation Wi-Fi 6
WiFi speed AX3600

Ethernet

Details
10/100/1000 Ethernet ports 5
Number of 1G Ethernet ports with PoE-out 1

Peripherals

Details
Number of USB ports 1
USB Power Reset Yes
USB slot type USB 3.0 type A
Max USB current (A) 1.5

Powering

Details
Number of DC inputs 1 (DC jack)
DC jack input Voltage 18-57 V
Max power consumption 55 W
Max power consumption without attachments 18 W
Cooling type Passive

PoE-out

Details
PoE-out ports Ether5
PoE out Passive PoE up to 57V
Max out per port output (input 18-30 V) 600 mA
Max out per port output (input 30-57 V) 500 mA
Max total out (A) 0.600 A
Total output current 0.600
Total output power 22.8

Certification & Approvals

Details
Certification CE, FCC, IC, EAC, ROHS
IP 20

Other

Details
CPU temperature monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes
Mode button Yes



Additional information

Weight 1.3 kg
Dimensions 35 × 25 × 8 cm
