CME Gateway

CAD$120.85

The Mikrotik CME gateway; is a a rugged low-cost IOT gateway for the tightest of budgets.
This is a low-bandwidth modem to connect Ethernet devices to CAT-M mobile network.

  • RouterOS Version 7.
  • IOT Gateway.
  • CAT-M mobile network hardware included.
  • POE IN and POE OUT

In stock

SKU: CME22-2n-BG77-1 Category: Tag:

Description

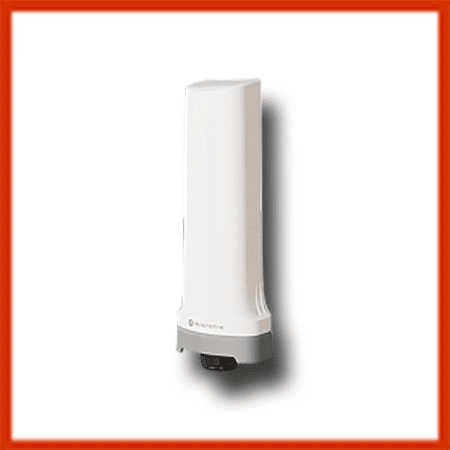

Mikrotik CME Gateway

Are you tired of wired sensor limitations? Wouldn’t it be nice if legacy devices – like electricity meters – could send their data over the mobile network, like our phones do? With CME Gateway you can achieve just that – and more!

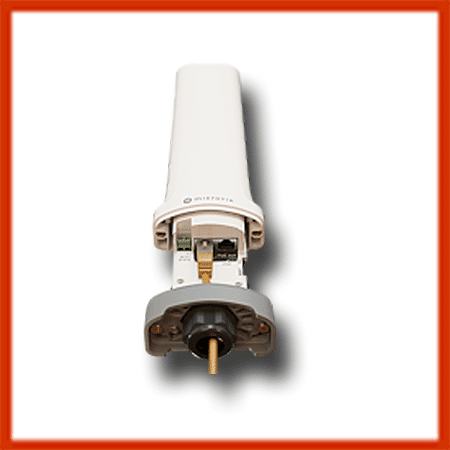

It has two Ethernet ports, an on-board CPU, some RAM, and the crown jewel: a powerful built-in CAT-M narrow-band LTE modem. For extremely efficient, low-cost, low-bandwidth mobile internet connectivity. Sure, the narrowband won’t be able to stream YouTube videos, but it serves a different purpose: it offers better network coverage and transmits data via the most affordable data plans in the world.

With the IP66 water resistance rating, the sturdy unit can survive a variety of harsh environments and setups: damp attics, rainy forests, farming equipment and so on. It has PoE-in, PoE-out, and a 2-pin DC terminal for handy powering. And to make management even easier – we’ve added a simple single-chain 2.4 GHz wireless – so you can use the MikroTik smartphone app to configure everything.

Also, a fun bonus: the board supports GPS, so if you know your way around RouterOS scripting, you can try collecting weekly, daily or even hourly location data as well!

Double click to see video.

Specifications

Details
Product code CME22-2n-BG77
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
Switch chip model QCA9531
RouterOS license 4
Operating System RouterOS v7
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100’000 hours at 25C
Tested ambient temperature -40°C to 70°C
Suggested price $89.00

Powering

Details
Number of DC inputs 2 (PoE-IN, 2-pin terminal)
2-pin terminal input Voltage 12-57 V
Max power consumption 31 W
Max power consumption without attachments 6 W
PoE in 802.3af/at
PoE in input Voltage 18-57 V

PoE-out

Details
PoE-out ports Ether2
PoE out Passive PoE up to 57V
Max out per port output (input 18-30 V) 600 mA
Max out per port output (input 30-57 V) 450 mA
Max total out (A) 0.6 A

Wireless specifications

Details
Wireless 2.4 GHz Max data rate 150 Mbit/s
Wireless 2.4 GHz number of chains 1
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2
Wireless 2.4 GHz chip model QCA9531
Wireless 2.4 GHz generation Wi-Fi 4

Ethernet

Details
10/100 Ethernet ports 2

Peripherals

Details
Number of SIM slots 1 Modem (Nano SIM)

Certification & Approvals

Details
Certification CE, FCC, IC, EAC, ROHS
IP 66

Additional information

Weight 1 kg
Dimensions 34 × 12 × 8 cm
