Description

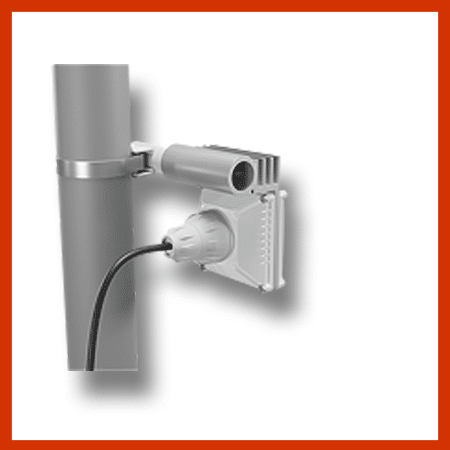

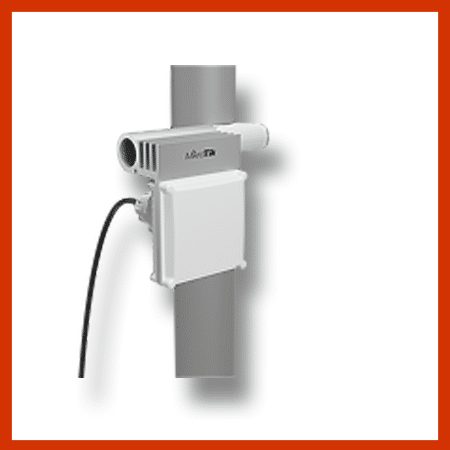

CubeSA 60Pro ac

Long gone are the days when you had to rely on cables for speed and stability. 60 GHz solutions offer fiber-like speed and stability – while saving you plenty of time and money on installation and maintenance. Our latest Cube 60Pro product line is taking the advantages of 60 GHz networking to the next level – with the 802.11ay standard for even higher distances, stability, speed, and convenience.

If you need to connect multiple devices – take a look at the CubeSA 60Pro ac sector antenna. Reaching distances around 600 meters in point-to-multi-point mode, this device can be very helpful for all kinds of event management: from live shows, festivals, and workshops to construction sites, pop-up vaccination clinics, and so on. No need for complex wired installations in every location – the portable and handy CubeSA 60Pro ac has got you covered! Depending on your setup, the distance can be even greater. For example, with devices like MikroTik nRAY, you can reach up to 800 meters.

Forget about downtime with the automatic 5 GHz backup connection

The 60 GHz frequency is unaffected by the crowded wireless spectrum, it offers high speed and capacity. But it can sometimes struggle during bad weather conditions. That’s why both Cube 60Pro devices feature an automatic 5 GHz failover. We have added a powerful directional antenna so that the 5 GHz range can keep up with the 60 GHz.

More durability, less unwanted attention

We have upgraded the enclosure to feature a strong metal base – for better mounting and cooling options. The Cube form-factor emerges from pure practicality: it is durable, unobtrusive, and compact.



Specifications

Details
Product code	CubeG-5ac60ay-SA
Architecture	ARM 32bit
CPU	IPQ-4019
CPU core count	4
CPU nominal frequency	716 MHz
Dimensions	115 x 211 x 90 mm
RouterOS license	4
Operating System	RouterOS
Size of RAM	256 MB
Storage size	64 MB
Storage type	FLASH
MTBF	Approximately 200’000 hours at 25C
Tested ambient temperature	-40°C to 70°C

Powering

Details
Number of DC inputs	1 (PoE-IN)
Max power consumption	13 W
Cooling type	Passive
PoE in	802.3af/at
PoE in input Voltage	18-48 V

Wireless specifications

Details
Wireless 5 GHz Max data rate	433 Mbit/s
Wireless 5 GHz number of chains	1
Wireless 5 GHz standards	802.11a/n/ac
Antenna gain dBi for 5 GHz	11.5
Wireless 5 GHz chip model	IPQ4019
Wireless 5 GHz generation	Wi-Fi 5

Ethernet

Details
10/100/1000 Ethernet ports	1

Other

Details
GNSS standards	GPS
