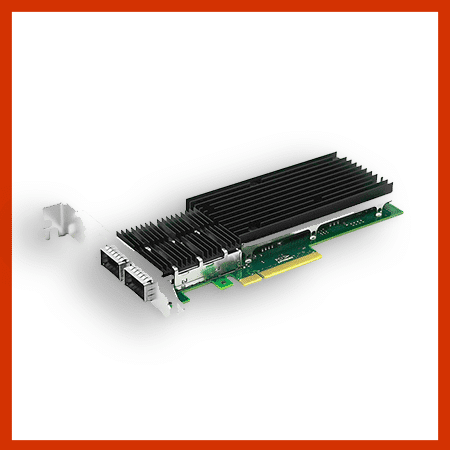

The LREC9902BF-2QSFP+ is based on the high-speed PCI Express v3.0 x8 interface and is
backward compatible with PCI Express v2.1, PCI Express v2.0 transfer rate interfaces.
The LREC9902BF-2QSFP+ supports Intel® PRO Smart Install and the new Intel® PROSet
designed for Microsoft Device Manager to simplify installation and management. The Intel
PROSet program simplifies the installation process for the adapter.
Specifications
| Controller | Intel XL710 |
| Baffle Height | Full height & half height |
| Fiber Type | 40000Base-SR, 40000Base-LR, 40000Base-Cu |
| Power Consumption | 5.6W |
| System Support | Windows 7/8/8.1/10 |
| Windows Server 2008 R2/2012 R2/2016 R2/2019 /2019 R2 | |
| Linux Stable Kernel version 3.x/4.x or later; | |
| Linux CentOS/RHEL 6.5 / 7.x or later | |
| Ubuntu 14.x/15.x/16.x or later | |
| VMware ESX/ESXi 4.x/5.x/6.x or later | |
| Bus Type | PCI Express v3.0 (8.0GT/s) x8 , compatible with x16 |
| Data Rate Supported per port | 40000MbE |
| Connector | 2*QSFP+ |
– 3 –
Technical Features
| Standards Compliant | IEEE 802.3ba 40 Gigabit Ethernet IEEE 802.3x Full Duplex and flow control IEEE 802.3BD IEEE 802.1AS IEEE 802.1Q VLAN IEEE 802.3AD IEEE 802.3az – Energy Efficient Ethernet (EEE) IEEE 802.3ap |
| PXE | Yes |
| iSCSI | Yes |
| FCoE | Yes |
| DPDK | Yes |
| WoL | No |
| VMDq | Yes |
| Jumbo Frames | Yes |
| RSS | Yes |
| PCI-SIG*SR-IOV | Yes |
| Network virtualization | VXLAN, NVGRE, Geneve, Network Service Headers(NSH), VEPA, VEB |
Environment Features
| Operating Temperature | 0 ℃ to 55 ℃ (-13 ℉ to 158 ℉ ) |
| Storage Temperature | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉ ) |
| Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
Physical Features
| Size(mm) | 165*120*21 |
| Weight(g) | 175 |

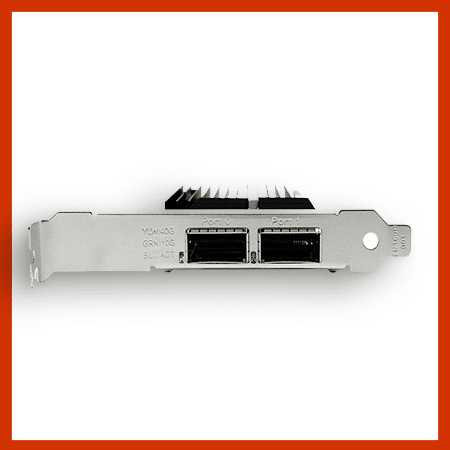

LED Indicators
| LED Indicators | Yellow Link + Blue Link + Green Blink |
