Flex-guide

CAD$12.55

Low loss cable assembly, soldered on both ends, with silver plated copper and less than 0.65dB losses

In stock

SKU: ACRPSMA Category:

Description

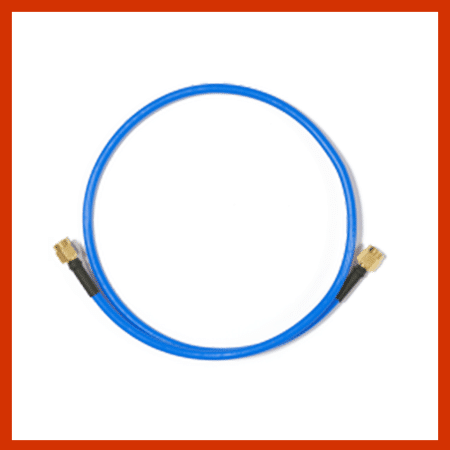

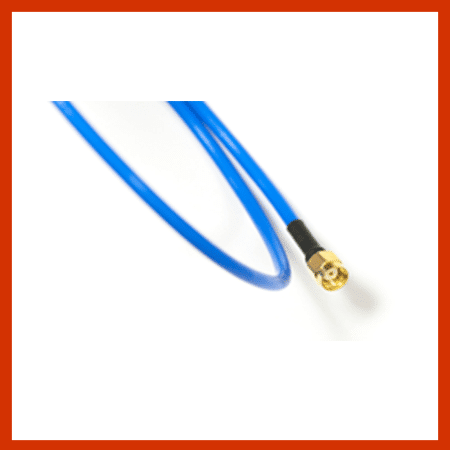

A super low loss 50cm long RPSMA cable for superior connection quality, suited for indoor and outdoor use, this cable provides superior matching and loss values.

The name of this cable comes from combining the words “flexible” and “waveguide”, to denote the high end features of this product.

The inner conductor is silver plated copper, and both connectors are soldered, not crimped, for the best possible signal quality. Ideally suited for our BaseBox and other products with RPSMA connectors, and works with most antennas.

Product specifications

Details
Product code ACRPSMA
Operating Temperature -55C to 125C
Signal loss below 0.65dB
Matching above -20dB
Frequency up to 6GHz

Additional information

Weight 1 kg
Dimensions 1 × 8 cm
