Description

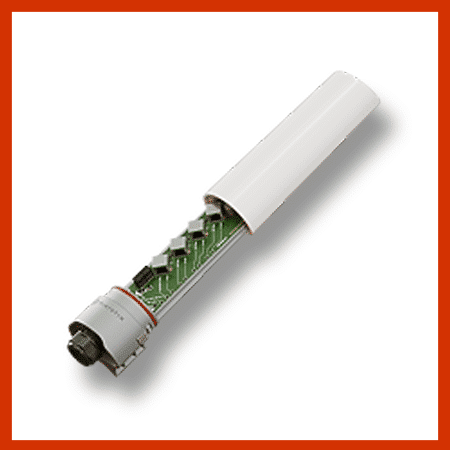

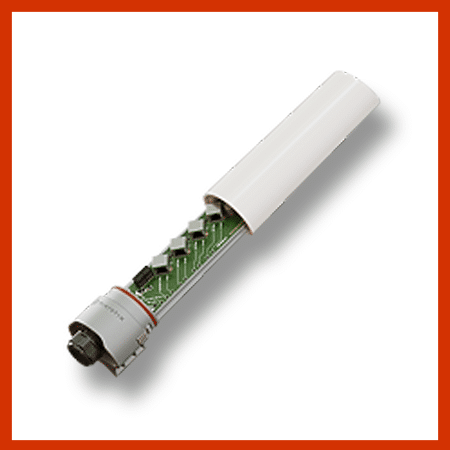

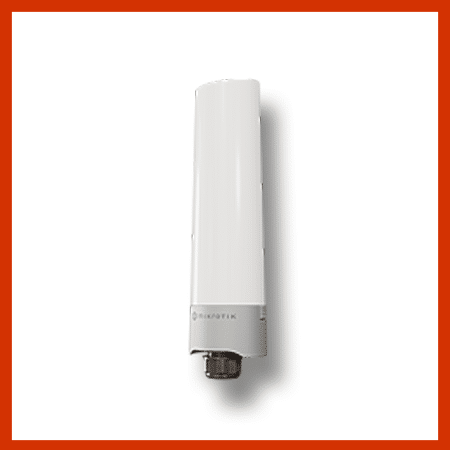

Mikrotik GPeRx4
The GPeRx4 is not your average Ethernet extender. This compact, outdoor-ready device is designed to split* a single 90W PoE-out port into multiple 30W PoE-out ports, providing cost-effective flexibility for powering cameras, access points, and other devices.
Power and Expand with Ease
Take advantage of your high-power PoE-out port by splitting it into three standard PoE-out connections, ideal for adding more devices without upgrading your switch.
Built for Rough Conditions
Housed in a robust enclosure, the GPeRx4 can handle tough environments, making it the perfect choice for outdoor setups.
Flexible Power Options
Supports PoE-in and a 2-pin terminal, ensuring versatility for different power sources.
Advanced SwOS Lite Management
Manage your network effortlessly via Web with SwOS Lite, providing:
- Interface monitoring
- VLAN support
- Traffic shaping
- SNMP reporting
- Fault detection for GPEN links
Product specifications
| Details | |
|---|---|
| Product code | GPER14i |
| 10/100/1000 Ethernet ports | 4 |
| 2-pin terminal input Voltage | 24-57 V |
| CPU nominal frequency | 200 MHz |
| Can be used outdoors | Yes |
| Certification | CE, EAC, ROHS |
| IP | 68 |
| Max out per port output (input 18-30 V) | 0.7 A |
| Max out per port output (input 30-57 V) | 0.6 A |
| Max power consumption | 115 W |
| Max power consumption without attachments | 4 W |
| Max total out (A) | 2.0 A |
| Number of 1G Ethernet ports with PoE-out | 3 |
| Number of DC inputs | 2 (2-pin terminal, PoE-IN) |
| PoE in | 802.3 bt |
| PoE in input Voltage | 48-57 V |
| PoE out | 802.3af/at |
| PoE-out ports | Ether2-Ether4 |
| Storage size | 64 KB |
| Storage type | FLASH |
| Switch chip model | 88E6341 |
| Tested ambient temperature | -40°C to 70°C |
