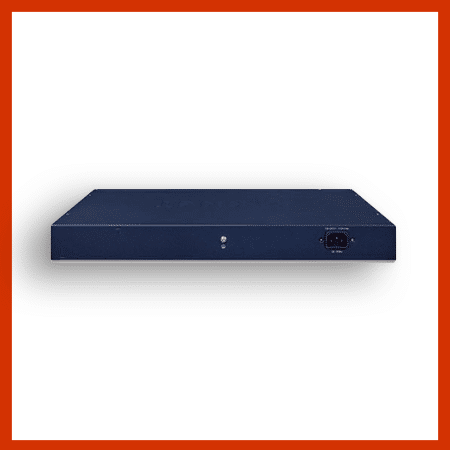

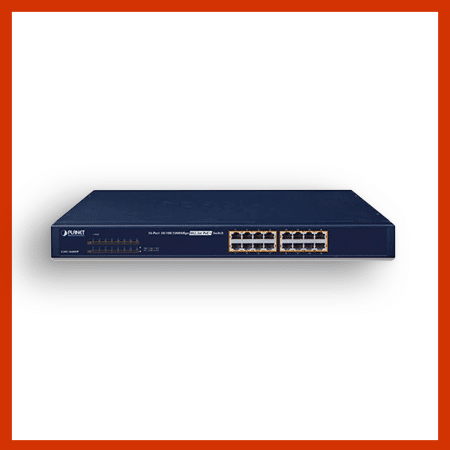

16-Port 1G 802.3at PoE+ Ethernet Switch

CAD$276.07

PLANET GSW-1600HP 16-port Gigabit 802.3at Power over Ethernet Plus Switch with Green Technology features, high-performance Gigabit IEEE 802.3af PoE (Up to 15.4W) and IEEE 802.3at PoE+ (Up to 30.8W) capabilities on all ports.

In stock

SKU: GSW-1600HP Category:

Description

Interface

  • 16-port 10/100/1000BASE-T Gigabit Ethernet RJ45 ports



Power over Ethernet

  • Complies with IEEE 802.3at Power over Ethernet Plus Standard
  • Complies with IEEE 802.3af Power over Ethernet
  • Up to 16 ports of IEEE 802.3af/802.3at devices powered
  • Supports PoE Power up to 30.8 watts for each PoE port
  • Each port supports 52V DC power to PoE powered device
  • 220-watt PoE budget
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100m



Switching

  • Hardware-based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
  • Flow control for full duplex operation and back pressure for half duplex operation
  • Integrates address look-up engine, supporting 8K absolute MAC addresses
  • 9K jumbo frame supports all speeds (10/100/1000Mbps)
  • IEEE 802.1Q VLAN transparency
  • Automatic address learning and address aging
  • Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)



Hardware

  • 19-inch desktop size, 1U height
  • LED indicators for PoE ready and PoE activity
  • Ethernet Link Energy-saving technology
  • – Link down power saving

    – Intelligent scales power based on cable length

By offering reliable switching technology and advanced networking features, the GSW-1600HP optimizes the installation and power management of network devices such as wireless access points, VoIP phones, and security cameras. It also eliminates time and cost of deployment by integrating power and data switching into one unit, and freeing network devices from restrictions of power outlet locations and the additional AC wiring.Perfect Integrated Solution for PoE IP Surveillance

The GSW-1600HP brings an ideal secure surveillance system at a lower total cost. The GSW-1600HP provides 16 10/100/1000Mbps 802.3at PoE+ ports able to feed sufficient PoE power for 16 IEEE 802.3af/IEEE 802.3at PoE+ IP cameras at the same time. It is also able to connect with one 16-channel NVR or two 8-channel NVRs, uplinked to backbone switch and the monitoring center. With such high-performance switch architecture, the recorded video files from the PoE IP cameras can be saved to the NVR system where the administrator can control and monitor the surveillance images in both the local LAN and remote sites.



Energy-saving Design

The GSW-1600HP uses new engine that incorporates two advanced Green Networking technologies:

  • Idle Mode Link Down power saving
  • Intelligent Scales Power based on cable length



The Idle mode Link Down power saving of the GSW-1600HP complies with IEEE 802.3az Energy Efficient Ethernet (EEE) standard to automatically lower power for a given port when it is not linked. The Intelligent Scales Power technology actively determines the appropriate power level based on the cable length. When connecting to the GSW-1600HP with Ethernet cable shorter than 20m, a device can obtain maximum power saving because the GSW-1600HP would automatically detect the Ethernet cable length and reduce power usage. The connected device can substantially reduce the overall power consumption, which makes a significant contribution to energy saving.



Easy Installation and Cable Connection

Providing data transfer and high Power PoE in one unit, the GSW-1600HP is able to reduce the need of extension cables and dedicated electrical outlets on the wall, ceiling or any unreachable place. It helps to lower the installation costs and simplify the installation effort. All RJ45 copper interfaces of the GSW-1600HP support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cables. It also supports standard auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.

Additional information

Weight 3.6 kg
Dimensions 56 × 30 × 9 cm
