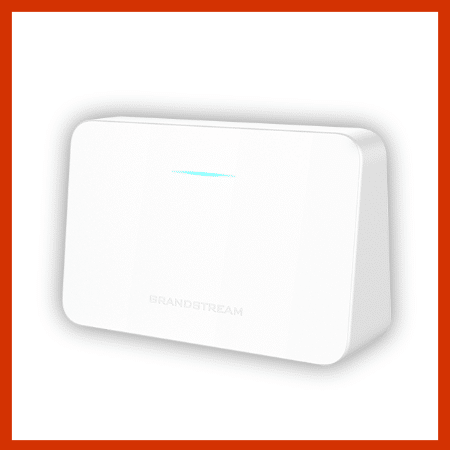

Grandstream GWN7062E

The GWN7062E is a secure dual-band AX3000 router powered by the latest Wi-Fi 6 (802.11ax) technology. Ideal for small
offices, home offices and remote workers,

This all-in-one router provides 2.4G 2×2:2 and 5G 3×3:2 MU-MIMO with XTRA Rangetechnology with beam-forming for maximum network throughput and expanded Wi-Fi coverage range, as well as support for wireless Mesh networks. It features a powerful 1.3GHz dual-core processor to provide Wi-Fi speeds up to 3Gbps with up to 128 wireless devices,

The GWN7062E provides capability to power smart office and home automation, deliver smooth 4K Ultra HD streaming, web meetings, video conferences, online gaming and more. Also It offers high-performance routing and switching power along with built-in VPN support for secure in-office and inter-office connectivity.

Additionally the GWN7062E provides parental controls by managing online time control, blocking inappropriate content, and offering daily and weekly statistics to keep families safe while online. This router also provides enterprise-grade security features to ensure secure Wi-Fi and VPN access, including unique security certificates and random default passwords.



Specification

WIFI Specification

Wi-Fi Standards          IEEE 802.11 a/b/g/n/ac/ax

Antennas        1x 5GHz: maximum gain 3.4dBi

2x 2.4GHz&5GHz: maximum gain 4.7dBi for 2.4GHz, 4.3dBi for 5GHz

Wi-Fi Data Rates

5G:

IEEE 802.11ax: 7.3 Mbps to 2402 Mbps

IEEE 802.11ac: 6.5 Mbps to 1732 Mbps

IEEE 802.11n: 6.5Mbps to 300Mbps

IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

2.4G:

IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps

IEEE 802.11n: 6.5Mbps to 300Mbps

IEEE 802.11b: 1, 2, 5.5, 11 Mbps

IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

*Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment

and mix of devices in the network

Frequency Bands

2.4GHz radio: 2400-2483.5MHz.

5GHz radio: 5150-5895MHz

*Not all frequency bands can be used in all regions

Channel Bandwidth   HT 20/40, VHT 20/40/80, HE 20/40/80/160

Security           WPA/WPA2, WPA2, WPA2/WPA3, WPA3; anti-hack security boot and critical data/control lockdown via digital signatures; unique security certificate and random default password per device; security firewall including DoS, blocklist and URL content filtering; application monitoring and traffic statistics with DPI

Coverage Range         Up to 150 square meters

*coverage range can vary based on environment

SSIDs               4 SSIDs total

Concurrent Wireless Clients Up to 128 wireless clients

Network specification

Networking Interfaces           3x auto-sensing 10/100/1000Mbps Ethernet ports Auxiliary Ports 1x SYNC, 1x POWER, 1x RESET

Network Protocols     IPv4, IPv6, 802.1p, 802.11e/WMM, DSCP QoS

• Support 8 queues with multiple traffic priority and bandwidth
• APP QoS
• QoS rules

NAT     DDNS, Port Forwarding, DMZ, UPnP

VPN Specification

Supports 1 VPN tunnel:

• L2TP Client
• PPTP Client
• IPSec Site-to-Site & Client-to-Site
• OpenVPN® Server
• WireGuard® Site-to-Site & Peer-to-Site

WAN

Internet Connection Type:

• PPPoE
• PPTP
• L2TP
• Dynamic IP
• Static IP

Dual-WAN Policy:

• Load Balance
• Failover

LAN

• DHCP server
• LAN port IP settings
• Client list
• Static address binding

Mesh One router with up to 3 GWN7062E as mesh node

Networking Management

• Embedded controller (can only manage itself)
• GDMS (Networking) offers a free cloud management platform for unlimited GWN Routers
• GWN Manager offers premise-based software controller
• TR-069

Power and Green Energy Efficiency

USB Type-C power adapter included:

Input: 100~240V 50/60Hz

Output: 5V/3A(15W)

Environmental Operation: 0°C to 40°C, humidity: 10% to 90% RH (Non-condensing)
