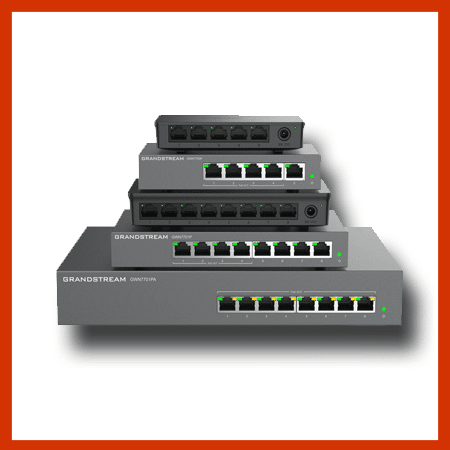

GWN7701PA

CAD$117.83

The GWN7701 PA is an un-managed network POE switch that provide a quick and cost-effective way to add high-speed Gigabit connectivity to home offices and small-to-medium sized businesses.

In stock

SKU: GWN7701PA Category: Tag:

Description

  • 8Gigabit RJ45 ports, 8 port PoE+ output
  • Green technology reduces power consumption
  • LED Indicators; Per port: Link/Activity/Speed, Per Port: PoE output (GWN7701PA/GWN7702P), Per device: Power
  • Auto MDI/MDIX crossover for all ports
  • 802.3 af/at compliant Up to 30W on each port,.
  • Broadcast/Multicast/Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
  • Supports long cable connection
  • QoS – Supports Default Strict Priority when present

Detailed specs.

Gigabit Ports: 8
PoE Ports: 8
Enclosure: Metal
Mounting: Desktop/Rack-Mount
Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Port Feature: 8× 10/100/1000Mbps RJ45 Ports AUTO Negotiation AUTO MDI/MDIX
Network Media: 1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex
PoE Configuration:

  • 1~8 Ports 802.3 af/at compliant
  • Up to 30 W on Each Port, Total 145W Power Budget;
  • Overload to cut off the lowest-priority port.
  • Priority: Port 8 to Port 1

Mac Address: Table 8K
Switching Capacity: 16Gbps
Jumbo Frame: 9KB
Advanced Features:
Mac Address Auto-Learning And Auto-Aging
IEEE 802.3x Flow Control
802.1p/DSCP QoS
Unlink clear FDB Feature
IGMP:

  • IGMP Fast-Leave
  • IGMP Snoop
  • Route Port Autolearn
  • Query Refresh Member Port

Power Adapter External: Internal 100-240V AC, 50/60Hz,150W
Max Power Consumption:6.7W @220V/50Hz (excluding PoE output power)
Compliance: FCC, CE, RCM, IC, UKCA

Additional information

Weight 2 kg
Dimensions 37 × 21 × 6 cm
