Description
hAP ac lite (tower)
The hAP ac lite is a Dual-concurrent Access Point, that provides Wifi coverage for 2.4GHz and 5GHz frequencies at the same time.
Unit is equipped with a 650MHz CPU, 64MB RAM, five 10/100Mbps Ethernet ports (PoE output on port #5), dual-chain 802.11b/g/n 2.4GHz wireless, single chain 802.11ac 5GHz wireless, USB port for 3G/4G modem and a RouterOS L4 license.

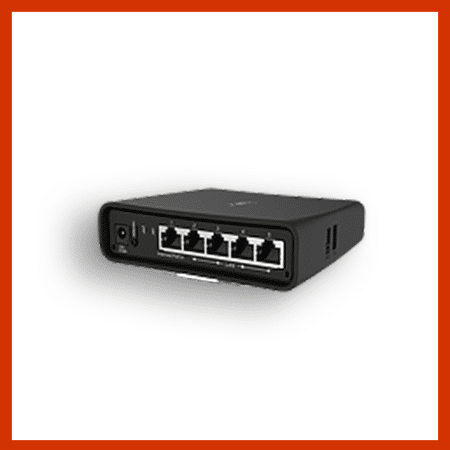

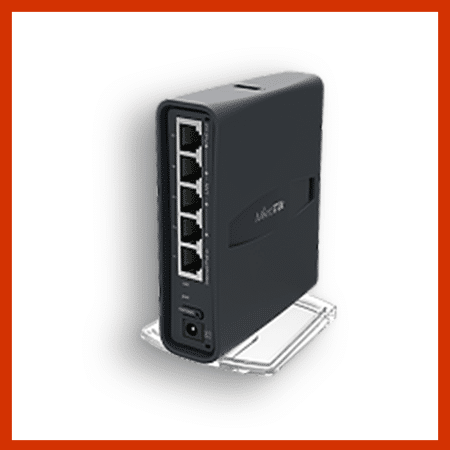

New design universal case allows unit to be positioned either horizontally (desktop) or vertically (tower case). Wall anchored mounting kit is provided.
We have two versions available – RB952Ui-5ac2nD-TC (International) and RB952Ui-5ac2nD-TC-US (USA). RB952Ui-5ac2nD-TC-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed. RB952Ui-5ac2nD-TC (International) supports 2412-2484MHz and 5150MHz – 5875MHz range.
Product specifications
| Details | |
|---|---|
| Product code | RB952Ui-5ac2nD-TC |
| CPU nominal frequency | 650 MHz |
| CPU core count | 1 |
| Size of RAM | 64 MB |
| 10/100 Ethernet ports | 5 |
| Wireless standards | 802.11a/n/ac |
| Wireless chip model | QCA-9887 |
| Secondary wireless standards | 802.11b/g/n |
| Secondary wireless chip model | QCA9531 |
| Number of USB ports | 1 |
| Power Jack | 1 |
| PoE in | Yes |
| PoE out | Yes |
| Supported input voltage | 10 V – 30 V |
| Dimensions | 34 x 119 x 98mm |
| Operating System | RouterOS |
| License level | 4 |
| Antenna gain DBI | 2 |
| CPU | QCA9531 |
| Max Power consumption | 8W |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Number of chains | 1 |
| Storage type | FLASH |
| Storage size | 16 MB |
