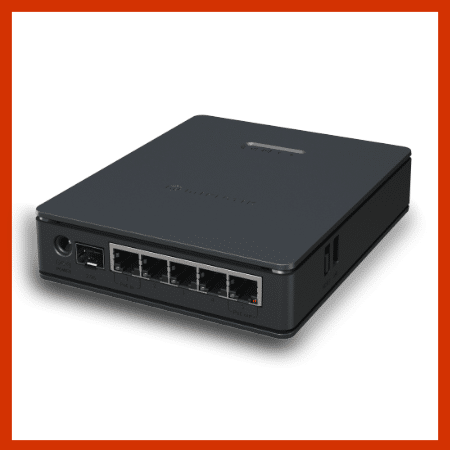

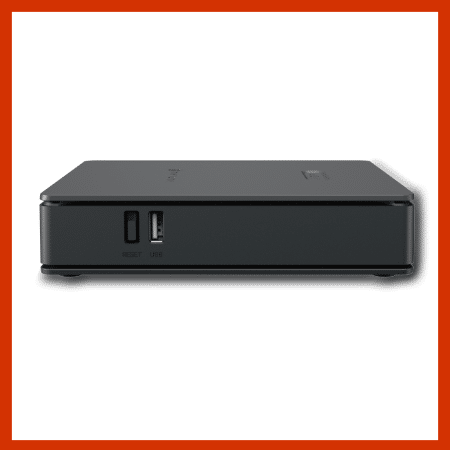

Mikrotik hAP ax S
Triple-chain 5 GHz the key to stable, gigabit-class Wi-Fi.
The new hAP ax S features a triple-chain 5 GHz radio that achieves real-world throughput of around 800–900 Mbit/s. That means smooth streaming, faster downloads, and stable performance across multiple devices – even in crowded environments.
It’s also perfect as a dedicated Wi-Fi 6 VR streaming access point for PC VR headsets, offering higher resolution and lower latency without the cables. Unlike single-purpose “gaming” access points, the hAP ax S gives you the full performance, flexibility, and future-proofing of RouterOS v7!
Specifications
- Product code E62iUGS-2axD5axT
- Suggested price $79.00
- Architecture ARM 32bit
- CPU EN7562CT
- CPU core count 2
- CPU nominal frequency 950 MHz
- CPU Threads count 2
- Switch chip model EN7523
- RouterOS license 4
- Operating System RouterOS v7
- Size of RAM 512 MB
- Storage size 128 MB
- Storage type NAND
- MTBF Approximately 100’000 hours at 25C
- Tested ambient temperature -40°C to 70°C
Wireless capabilities
- Wireless 2.4 GHz Max data rate 574 Mbit/s
- Wireless 2.4 GHz Number of chains 2
- Wireless 2.4 GHz standards 802.11b/g/n/ax
- Antenna gain dBi for 2.4 GHz 5.5
- Wireless 2.4 GHz chip model MT7916
- Wireless 2.4 GHz generation Wi-Fi 6
- Wireless 5 GHz Max data rate 1800 Mbit/s
- Wireless 5 GHz Number of chains 3
- Wireless 5 GHz standards 802.11a/n/ac/ax
- Antenna gain dBi for 5 GHz 6.5
- Wireless 5 GHz chip model MT7976
- Wireless 5 GHz generation Wi-Fi 6
- WiFi speed AX2400
Ethernet
- 10/100/1000 Ethernet ports 5
- Number of 1G Ethernet ports with PoE-out 1
Fiber
- SFP ports 1 (2.5G supported)
Peripherals
- Number of USB ports 1
- USB Power Reset Yes
- USB slot type USB type A
- Max USB current (A) 1
Powering
- Number of DC inputs 2 (DC jack, PoE-IN)
- DC jack input Voltage 12-28 V
- Max power consumption 34 W
- Max power consumption without attachments 11 W
- PoE in Passive PoE
- Cooling type Passive
- PoE in input Voltage 18-28 V
PoE-out
- PoE-out ports Ether5
- PoE out Passive PoE
- Low voltage PoE-Out current limit 0.6 A
- Max total out (A) 0.6 A
- Total output current 0.6
- Total output power 16.8
Certification & Approvals
- Certification CE, FCC, IC, EAC, ROHS
- IP 20
Other
- CPU temperature monitor Yes
