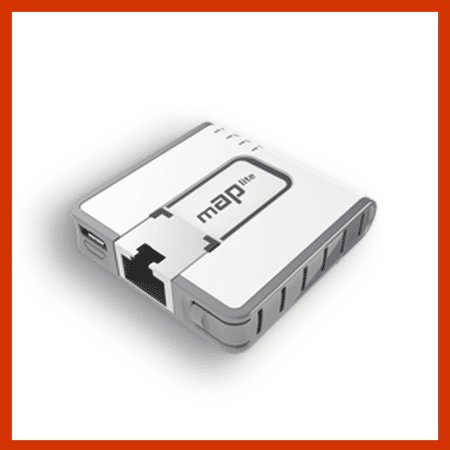

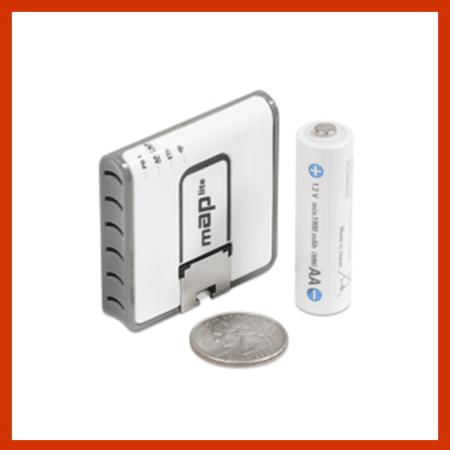

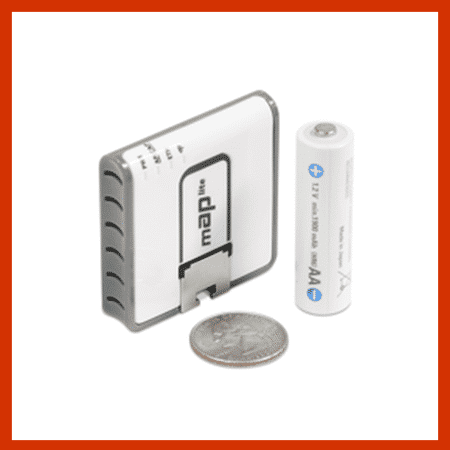

The mAP lite is our smallest wireless access point. It is barely larger than a matchbox, we even had to use a special Ethernet port to match it’s slim profile.

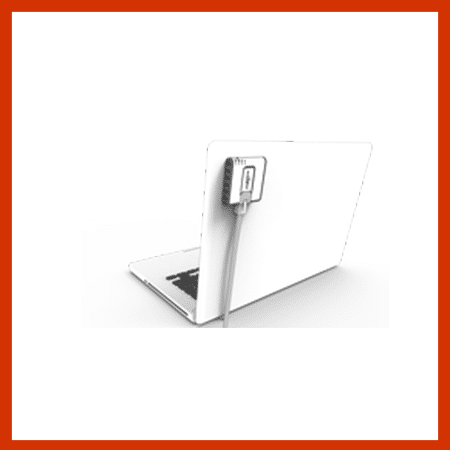

You can carry it anywhere: use as a travel router to extend that hotel internet to all your devices, or as a client device to improve your laptop signal range, the tiny mAP lite will be always with you.
It can also serve as a simple configuration tool for your servers, if there is no ethernet on your mobile device.
The mAP lite is a dual chain 802.11 b/g/n device and operates in 2GHz.
|CPU nominal frequency||650 MHz|
|CPU core count||1|
|Size of RAM||64 MB|
|10/100 Ethernet ports||1|
|Wireless chip model||QCA9533|
|Supported input voltage||5 V – 60 V|
|Tested ambient temperature||-30 + 70 C|
|Antenna gain DBI||1.5|
|Max Power consumption||3.5W|
|Number of chains||2|
|Storage size||16 MB|
