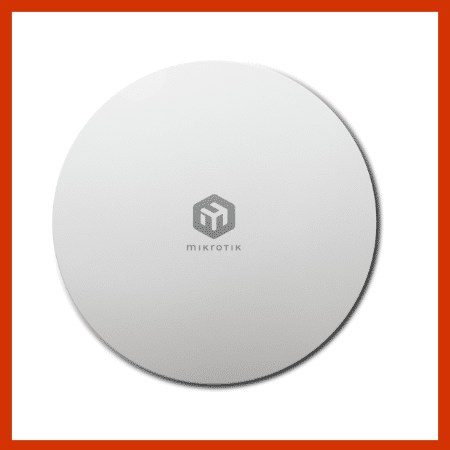

Mikrotik ATL 5G R16
Instant Connectivity, No Strings Attached
Installing an antenna on a rooftop and realizing you forgot a SIM card? MikroTik solves these issues!
The ATL 5G is engineered for high-performance connectivity, featuring a powerful 16 dBi directional antenna and 4×4 MIMO support. Furthermore, it is powered by a modern dual-core ARM CPU and 512 MB of RAM to ensure stable speeds. Whether you are located deep in the countryside or navigating city signal noise, this device delivers. Additionally, installation is effortless thanks to Gigabit Ethernet with PoE-in support, allowing a single cable to handle both power and data.
The ATL 5G is equipped with four high-gain middle-band antennas and four low-band antennas to ensure maximum signal reach. Notably, it includes full Band 28 support for both LTE and 5G. As a result, users experience exceptional coverage across the most critical frequencies. In particular, the device excels in the 700 MHz to 1 GHz range. This is significant because this frequency is the “sweet spot” for long-distance rural connectivity and reliable wall-penetrating performance.
Because low-frequency bands are a global standard for mobile operators, the ATL 5G is designed to “squeeze every drop” of performance from them. As a result, you maintain a stable connection in challenging environments. In addition to its superior signal handling, the device offers flexible data options. For instance, you can use the integrated MikroTik eSIM for IoT deployments or low-data scenarios, providing a streamlined alternative to physical SIM cards.
Ready for Harsh Conditions

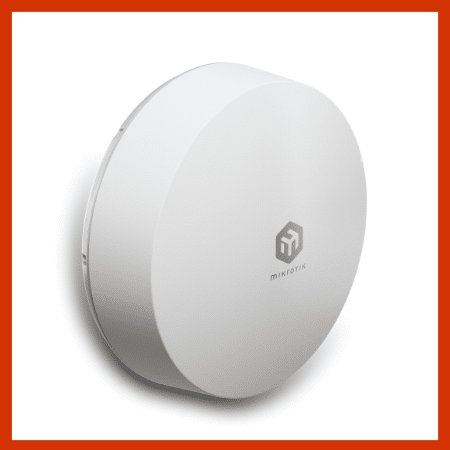

At first glance, ATL 5G looks like a spaceship — but there’s a good reason for that. This sleek form factor prevents snow and water from collecting and freezing up, making it ideal for installations in cold, wet, or windy environments. No need to climb back up and clean the antenna after every snowstorm. The IP66-rated enclosure is fully sealed against dust and powerful water jets, so ATL 5G can handle some of the roughest weather conditions.
Specifications
specs.
- Product code ATLGM&RG520F-EU
- Suggested price $349.00
- Architecture ARM 64bit
- CPU 88F3720
- CPU core count 2
- CPU nominal frequency 800 MHz
- CPU Threads count 2
- RouterOS license 3
- Operating System RouterOS v7
- Size of RAM 512 MB
- Storage size 32 MB
- Storage type FLASH
- MTBF Approximately 200’000 hours at 25C
- Tested ambient temperature -40°C to 70°C
powering
- Number of DC inputs 1 (PoE-IN)
- Max power consumption 10 W
- Max power consumption without attachments 10 W
- PoE in 802.3af/at
- Cooling type Passive
- PoE in input Voltage 12-56 V
mobile
- 3G Category R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
- 3G bands 1 (2100MHz)
5 (850MHz)
8 (900MHz)
- LTE Category 20 (2.0 Gbps Downlink, 200 Mbps Uplink)
- MIMO DL 4×4
- LTE FDD bands 20 (800MHz)
28 (700MHz)
3 (1800MHz)
5 (850MHz)
7 (2600MHz)
8 (900 MHz)
1 (2100MHz)
32 (1500 MHz)
- LTE TDD bands 40 (2300MHz)
38 (2600MHz)
41 (2500MHz)
42 (3500MHz)
43 (3700 MHz)
- 5G NSA FDD bands 1 (2100 MHz)
3 (1800 MHz)
5 (850 MHz)
7 (2600 MHz)
8 (900 MHz)
20 (800 MHz)
28 (700 MHz)
- 5G NSA TDD bands 40 (2300 MHz)
41 (2500 MHz)
77 (3700 MHz)
78 (3500 MHz)
76 (1500 MHz)
38 (2600 MHz)
75 (1500 MHz)
- 5G SA FDD bands 1 (2100 MHz)
3 (1800 MHz)
5 (850 MHz)
7 (2600 MHz)
8 (900 MHz)
20 (800 MHz)
28 (700 MHz)
- 5G SA TDD bands 38 (2600 MHz)
40 (2300 MHz)
41 (2500 MHz)
75 (1500 MHz)
76 (1500 MHz)
77 (3700 MHz)
78 (3500 MHz)
- TAC 86945405
Ethernet
- 10/100/1000 Ethernet ports 1
- Number of 1G Ethernet ports with Reverse PoE (PoE-in)
Peripherals
- Number of SIM slots 1 Modem (Micro SIM)
- Number of M.2 slots 1
