Description

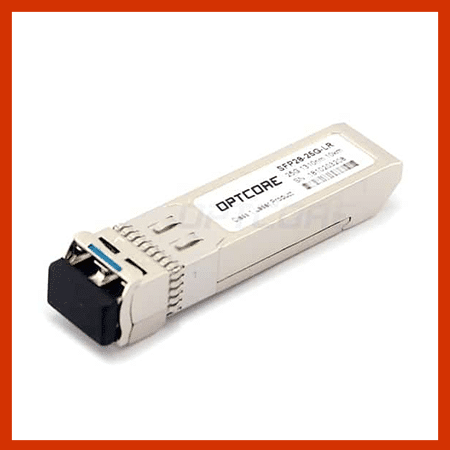

This SFP-25G-LR-S Compatible 25G SFP28 LR transceiver module is designed for use with Mikrotik or Cisco 25 Gigabit Ethernet connectivity in data center and high-performance computing networks applications. It is programmed and tested to perform identical to the original Cisco SFP-25G-LR-S 25GBASE-LR SFP28 transceiver and provide a cost-effective replacement. This 25G optics module features a highly reliable 1310nm DFB transmitter and PIN photo-detector into duplex LC optical connector, providing links up to 10km over single-mode fiber.
Features
• Functionally similar to Cisco SFP-25G-LR-S
• Support for 25Gb/s data rate
• 1310nm DFB transmitter, PIN photo-detector
• Distance up to 10km on single mode fiber
• Duplex LC connector
• Built-in digital diagnostic functions
• Single 3.3V power supply
• ROHS compliant and lead-free
Specification
| OEM Part Number | SFP-25G-LR-S | Optcore Part Number | SFP28-25G-LR-CSC |
| Form Factor | SFP28 | Data Rate | 25 Gb/s |
| Wavelength | 1310 nm | Fiber Type | SMF |
| Max Distance | 10 km | Optical Components | DFB/PIN |
| Receiver Sensitivity | < -10 dBm | Receiver Overload | > 3 dBm |
| Connector | Duplex LC | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.03 kg |
| Application | 25GBASE-LR Ethernet | Compliance | IEC/EN 61000-4-2,IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
