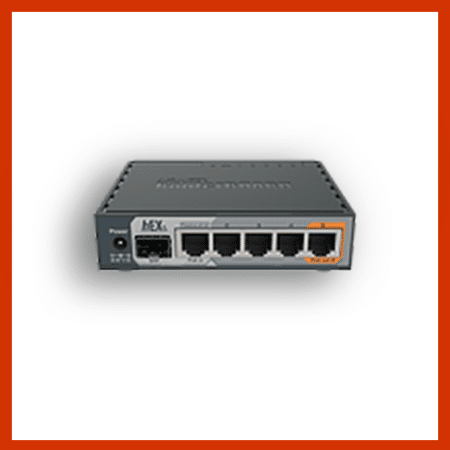

Mikrotik hEX S
The Mikrotik hEX S; A Mighty Mini Router.In the world of networking, the Mikrotik hEX S stands out as a compact powerhouse, designed for those who need reliable wired connectivity without the frills of wireless functions. This five-port Gigabit Ethernet router may be small in size, but it’s mighty in performance, boasting a dual-core 880 MHz CPU and 256 MB RAM. The perfect choice for tech enthusiasts looking for an affordable yet capable device.
Versatility
The hEX S is not just another router; it’s a versatile tool catering to a variety of networking needs. With its SFP port, it offers flexibility for fibre connectivity, which is a boon for those who require high-speed internet access. The PoE output on the last port is a thoughtful addition, allowing users to power up other devices directly through the router – a feature that can reduce cable clutter and save on power outlets.
VPN
For those concerned with security, the hEX S shines as a VPN server with VPN IPsec hardware encryption, ensuring that your data remains secure without compromising on speed. And let’s not forget the microSD slot – a feature that significantly enhances the router’s file storage capabilities, providing faster read/write speeds that are essential for running applications like the Dude server package.
In conclusion, the Mikrotik hEX S is a testament to the fact that great things come in small packages. It’s an ideal solution for small offices, tech labs, or even home networks where high-speed wired connectivity is paramount. Its combination of affordability, ease of use, and powerful features make it a standout choice for anyone looking to upgrade their network infrastructure. So, if you’re in the market for a new router, the hEX S might just be the tiny titan you need.
Specifications
| Details |
| Product code |
RB760iGS |
| Architecture |
MMIPS |
| CPU |
MT7621A |
| CPU core count |
2 |
| CPU nominal frequency |
880 MHz |
| CPU Threads count |
4 |
| Switch chip model |
MT7621A |
| Dimensions |
113 x 89 x 28 mm |
| RouterOS license |
4 |
| Operating System |
RouterOS |
| Size of RAM |
256 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| MTBF |
Approximately 100’000 hours at 25C |
| Tested ambient temperature |
-40°C to 70°C |
| IPsec hardware acceleration |
Yes |
|
|
Powering
| Details |
| Number of DC inputs |
2 (PoE-IN, DC jack) |
| DC jack input Voltage |
12-57 V |
| Max power consumption |
24 W |
| Max power consumption without attachments |
6 W |
| Cooling type |
Passive |
| PoE in |
802.3af/at |
| PoE in input Voltage |
12-57 V |
PoE-out
| Details |
| PoE-out ports |
Ether5 |
| PoE out |
Passive PoE up to 57V |
| Max out per port output (input 18-30 V) |
500 mA |
| Max out per port output (input 30-57 V) |
500 mA |
| Max total out (A) |
500 mA |
Ethernet
| Details |
| 10/100/1000 Ethernet ports |
5 |
Fiber
Peripherals
| Details |
| Memory card type |
microSD |
| Memory Cards |
1 |
| Number of USB ports |
1 |
| USB Power Reset |
Yes |
| USB slot type |
USB type A |
| Max USB current (A) |
1 |
Other
| Details |
| PCB temperature monitor |
Yes |
| Voltage Monitor |
Yes |
| Mode button |
Yes |
| Beeper |
Yes |
