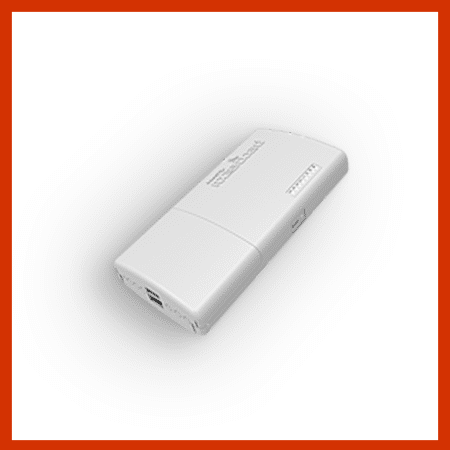

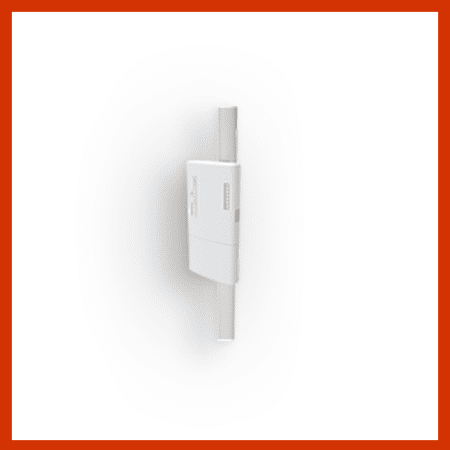

The PowerBox Pro is an outdoor five gigabit ethernet port router with PoE output on four ports. Since the device has a waterproof outdoor case, you can mount it on a tower, or in other outdoor locations.
It also supports passive or standard 802.3at/af PoE input/output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! It can power 802.3at and af mode B compatible devices, if 48-57 input voltage is used.
The device has a SFP port for adding optical fiber connectivity. It is affordable, small and easy to use, but at the same time comes with a very powerful 800MHz CPU, capable of all the advanced configurations that RouterOS supports.
Product specifications
| Details | |
|---|---|
| Product code | RB960PGS-PB |
| 10/100/1000 Ethernet ports | 5 |
| CPU | QCA9557 |
| CPU core count | 1 |
| CPU nominal frequency | 800 MHz |
| Dimensions | 125 x 52 x 225 mm |
| License level | 4 |
| Max Power consumption | 9W |
| Operating System | RouterOS |
| PCB temperature monitor | Yes |
| PoE in | Passive PoE |
| PoE out | 802.3af/at |
| Power Jack | 1 |
| SFP ports | 1 |
| Size of RAM | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Supported input voltage | 12 V – 57 V |
| Tested ambient temperature | -40°C .. +70°C |
| USB Power Reset | Yes |
| Voltage Monitor | Yes |
