Mikrotik RB1100AHx4
Introducing the RB1100AHx4, a high-performance router featuring 13 Gigabit Ethernet ports. It is powered by an Annapurna Alpine AL21400 CPU with four Cortex A15 cores, each clocked at 1.4GHz, providing a maximum throughput of up to 7.5Gbps. This device also supports IPsec hardware acceleration, achieving speeds of up to 2.2Gbps with AES128 encryption.

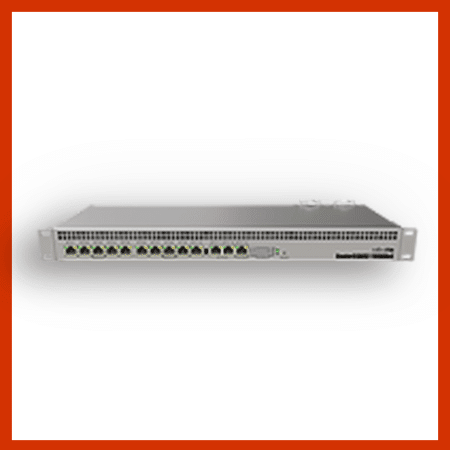

The unit comes in a 1U rackmount case, includes an RS232 serial port, and features dual redundant power supplies that support -48v DC telecom power and 802.3at/af standards
Specifications
| Details |
| Product code |
RB1100x4 |
| Architecture |
ARM 32bit |
| CPU |
AL21400-1400-A0-E-1AN-8-C |
| CPU core count |
4 |
| CPU nominal frequency |
1.4 GHz |
| Dimensions |
444 x 148 x 47 mm |
| License level |
6 |
| Operating System |
RouterOS |
| Size of RAM |
1 GB |
| Storage size |
128 MB |
| Storage type |
NAND |
|
|
Powering
| Details |
| Max Power consumption |
20W |
| PoE in |
802.3af/at |
| PoE in input Voltage |
20-57 V |
| Number of AC inputs |
2 |
| AC input range |
100-240 V |
| Number of DC inputs |
2 (2-pin terminal, PoE-IN) |
| 2-pin terminal input Voltage |
-48, 12-57 V |
Ethernet
| Details |
| 10/100/1000 Ethernet ports |
13 |
Peripherals
| Details |
| Serial port |
RS232 |
Other
| Details |
| Current Monitor |
Yes |
| PCB temperature monitor |
Yes |
| Voltage Monitor |
Yes |
