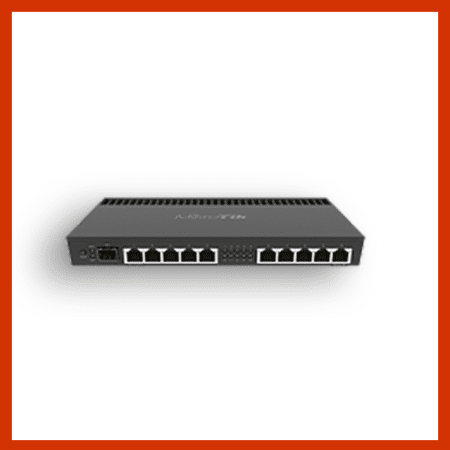

Mikrotik RB4011iGS+RM
This amazingly powerful router with ten Gigabit ports and also an SFP+ 10Gbps interface and IPsec hardware acceleration for a great price. Additionally the rb4011igs rm uses a quad core Cortex A15 CPU, same as in our carrier grade RB1100AHx4 unit.

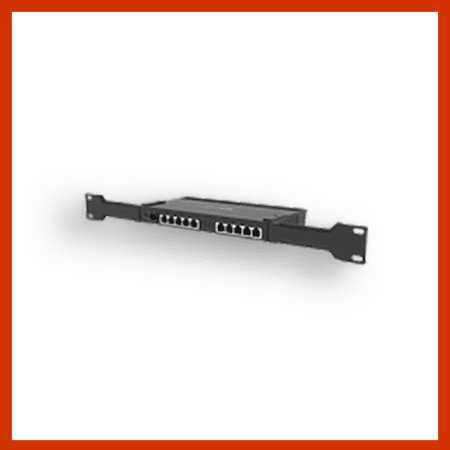

Furthermore the unit is equipped with 1GB of RAM, can also provide PoE output on port #10 and comes with a compact and professional looking solid metal enclosure in matte black. In addition rb4011igs rm (Ethernet model) comes with two rack-mount ears that will securely fasten the unit in a standard 1U rack space.
Specifications
| Details |
| Product code |
RB4011iGS+RM |
| Architecture |
ARM 32bit |
| CPU |
AL21400 |
| CPU core count |
4 |
| CPU nominal frequency |
auto (533 – 1900) MHz |
| Switch chip model |
RTL8367SB |
| Dimensions |
228 x 120 x 30 mm |
| RouterOS license |
5 |
| Operating System |
RouterOS v7 |
| Size of RAM |
1 GB |
| Storage size |
512 MB |
| Storage type |
NAND |
| MTBF |
Approximately 200’000 hours at 25C |
| Tested ambient temperature |
-40°C to 70°C |
| IPsec hardware acceleration |
Yes |
| Suggested price |
$219.00 |
Powering
| Details |
| Number of DC inputs |
2 (DC jack, PoE-IN) |
| DC jack input Voltage |
12-57 V |
| Max power consumption |
33 W |
| Max power consumption without attachments |
18 W |
| Cooling type |
Passive |
| PoE in |
Passive PoE |
| PoE in input Voltage |
18-57 V |
PoE-out
| Details |
| PoE-out ports |
Ether10 |
| PoE out |
Passive PoE up to 57V |
| Max out per port output (input 18-30 V) |
600 mA |
| Max out per port output (input 30-57 V) |
420 mA |
| Max total out (A) |
600 mA |
Ethernet
| Details |
| 10/100/1000 Ethernet ports |
10 |
Fiber
Peripherals
| Details |
| Serial console port |
RJ45 |
Other
| Details |
| PCB temperature monitor |
Yes |
| Voltage Monitor |
Yes |
