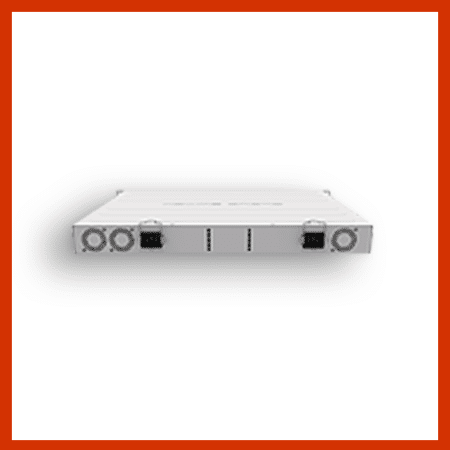

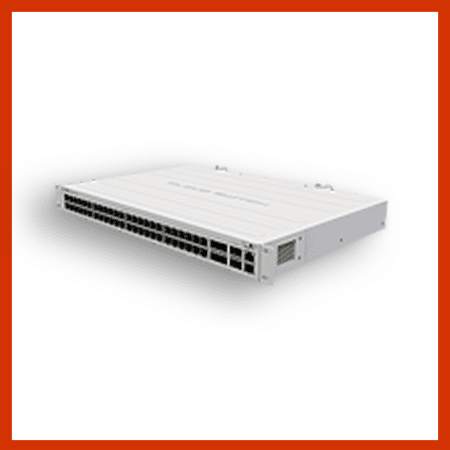

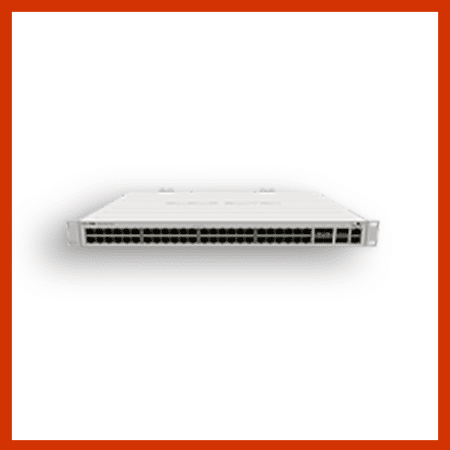

Mikrotik CRS354-48G-4S+2Q+RM
In particular & in case you are looking for a single switch that will put your network setup ahead of the curve without costing a fortune, look no further. The new CRS354-48G-4S+2Q+RM is an effective and adaptable rack-mount. Managing networks in demanding and busy environments would be simplicity with this switch. Furthermore we aim to set a new price vs performance bar that is untouchable by competition. Get alot more features while spending way less.
This power house of a switch has 48 x 1G RJ45 ports and 4 x 10G SFP+ ports. There are also 2 x 40G QSFP+ ports for extremely fast fiber connections or linking with other 40 Gbps devices. The total non-blocking throughput is 168 Gbps, switching capacity is 336 Gbps and the forwarding rate reaches 235 Mpps.
Specifications
| Details |
| Product code |
CRS354-48G-4S+2Q+RM |
| Architecture |
MIPSBE |
| CPU |
QCA9531 |
| CPU core count |
1 |
| CPU nominal frequency |
650 MHz |
| Dimensions |
297 x 443 x 44 mm |
| License level |
5 |
| Operating System |
RouterOS |
| Size of RAM |
64 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| Tested ambient temperature |
-20°C to 60°C |
|
|
Powering
| Details |
| Number of AC inputs |
2 |
| AC input range |
100-240 |
| Max power consumption |
60 W |
| Max power consumption without attachments |
50 W |
Ethernet
| Details |
| 10/100 Ethernet ports |
1 |
| 10/100/1000 Ethernet ports |
48 |
Fiber
| Details |
| SFP+ ports |
4 |
| Number of 40G QSFP+ ports |
2 |
Peripherals
Other
| Details |
| PCB temperature monitor |
Yes |
| Voltage Monitor |
Yes |
Ethernet Test Results
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
