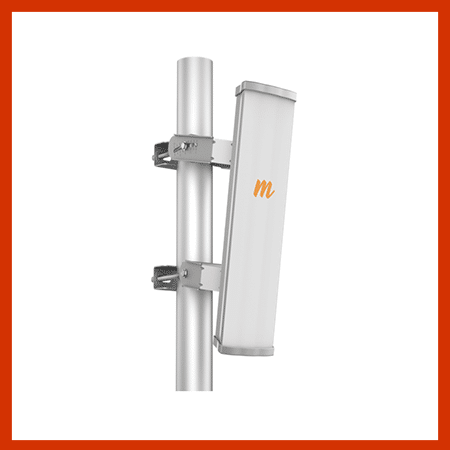

Mimosa N5-45×2
THE BASICS
19dBi
Gain (2-port)
43dB
Front-to-Back Ratio
4.9-6.4GHz
Wide-band Support

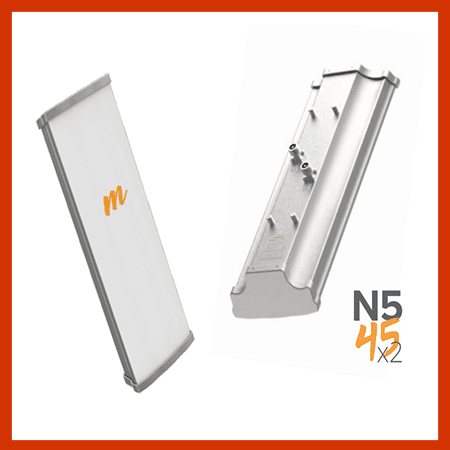

N5-45×2
Two-port 45º Sector
PRODUCT
Disruptive Sector Antenna
DESIGNED
No Sidelobes
Using state-of-the-art RF design, the N5-45 antennas are custom-engineered to deliver a high-gain, 42º half-power beamwidth with non-existent side lobes.
ENGINEERED
Industry’s Highest Front-to-Back Ratio
With an front-to-back ratio of 43 dB, the N5-45 antennas utilize metalized end-caps and a precision engineered backplate extrusion to improve noise rejection.
TECHNOLOGY
Beamformed High Gain
The N5-45×4, paired exclusively with Mimosa’s 4×4 MIMO A5c access point, achieves +3 dB of beamforming gain in both downlink and uplink.
ARCHITECTURE
Optimized Ground Coverage
High Capacity 360º Coverage
Cost-Effective 360º Coverage
Cost-Effective 90º Sector
Long-Range 45º Sector
Achieving the longest range and highest client count of all Mimosa PTMP solutions, eight A5c devices plus eight N5-45×4 antennas enable massive scale, frequency re-use and 4 Gpbs of capacity.
COMPATIBILITY
Supports Third-Party Access Points
Improve performance and noise rejection by using the N5-45×2 with any 2×2 access point.
