N5-X16

CAD$42.50

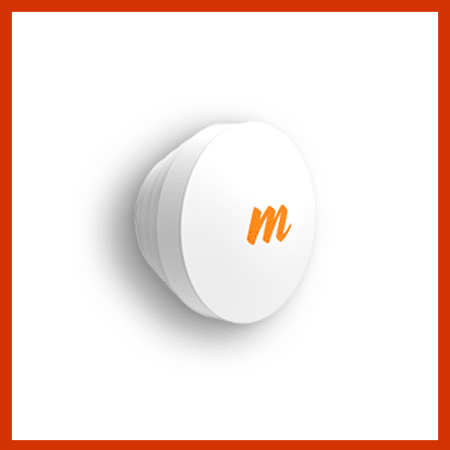

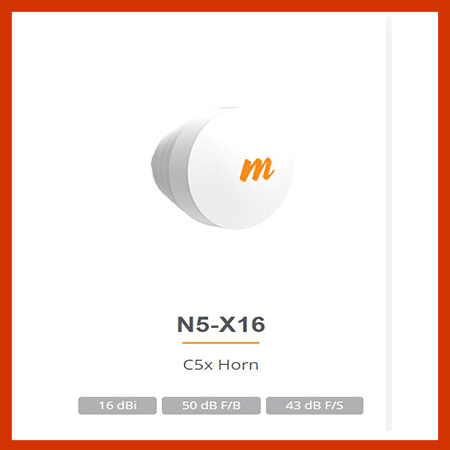

Mimosa 4.9-6.4 GHz 150mm Horn Ant. for C5x

In stock

SKU: N5-X16 Category:

Description

The N5-X16 Horn antenna specs.

N5-X16
(horn)
Gain 16 dBi
Polarization Dual-slant 45º
Beamwidth, Symmetric (3 dB) 22 dB 12 dB 8 dB
Front-to-Back Ratio (min)   50 dB
Front-to-Side Ratio (min)  43 dB
Weight of C5x + Antenna 0.4 kg (0.89 lbs)
Mount Dual-pole clamps Mimosa N5-X
Wind Survivability 200 km/h (125 mph)

Additional information

Weight 1 kg
Dimensions 22 × 22 × 16 cm
