Sale!

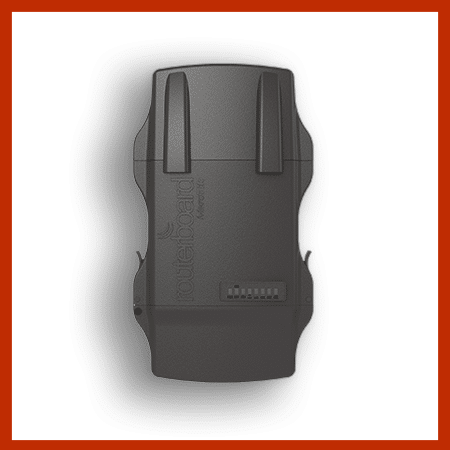

NetMetal 5-HPacD-NM

The 5Ghz integrated 802.11ac Dual Chain AP/Backbone/CPE, 2xRPSMA connectors, miniPCI-e slot, Gigabit Ethernet, waterproof metal enclosure.

In stock

SKU: RB922UAGS-5HPacD-NM Category:

Description

The NetMETAL is a completely new 802.11ac product in a waterproof metal enclosure. Its rugged design is made to withstand the toughest conditions, but at the same time is easy to use and can be opened and closed with one hand. The solid aluminum enclosure also works as a reliable heat-sink for it’s high output power radio.

The NetMETAL is equipped with powerful 720Mhz CPU, 128MB RAM, one Gigabit Ethernet port, 802.11ac wireless, one SFP cage, USB, RP-SMA connectors for external antennas and RouterOS L4 license.

RB922UAGS-5HPacD-NM version is equipped with miniPCI-express slot and SIM slot for 3G/4G device or additional wireless card, High power 2×2 Dual Chain 802.11ac wireless and two RP-SMA connectors for external antennas

Product specifications

Details
Product code RB922UAGS-5HPacD-NM
SFP DDMI yes
CPU nominal frequency 720 MHz
CPU core count 1
Size of RAM 128 MB
10/100 Ethernet ports None
10/100/1000 Ethernet ports 1
MiniPCI slots 0
MiniPCI-e slots 1
Wireless chip model QCA9882-BR4A-R
Wireless standards 802.11ac
Number of USB ports 1
Power Jack 0
802.3af support no
PoE out No
PoE in Yes
Supported input voltage 8 V – 30 V
Voltage Monitor Yes
PCB temperature monitor Yes
CPU temperature monitor No
Dimensions 143x247x48mm (PCB)
Operating System RouterOS
License level 4
Antenna gain DBI No
Current Monitor No
CPU QCA9557-AT4A-R
Max Power consumption 17 W
SFP ports 1
SFP+ ports None
USB slot type USB type A
Number of chains 2

Additional information

Weight 1.4 kg
Dimensions 11 × 36 × 18 cm
