NetMetal ax

CAD$228.22

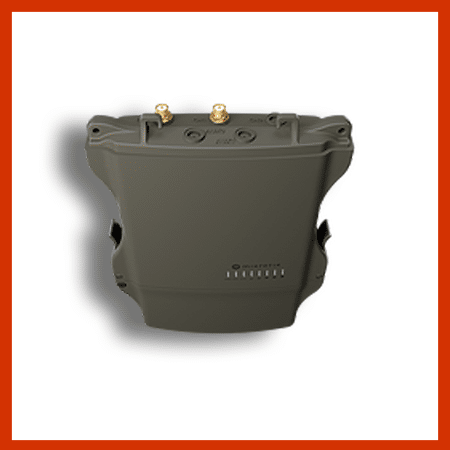

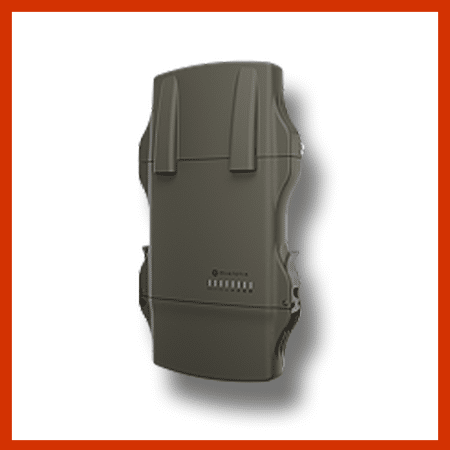

The MikroTik NetMetal ax is a robust outdoor wireless access point. Consequently it is called the Mars rover of networking due to its durability and advanced features. It’s designed to provide reliable Wi-Fi 6 connectivity over long ranges, making it ideal for challenging outdoor environments.

  • ARM 64 processor.
  • Rugged outdoor housing.
  • WIFI 6 Technology.

In stock

SKU: L23UGSR-5HaxD2HaxD-NM Category: Tags: ,

Description

The NetMetal ax is a robust outdoor access point that boasts Wi-Fi 6 capabilities. This ensures high-speed and reliable wireless connectivity even in the most challenging environments.

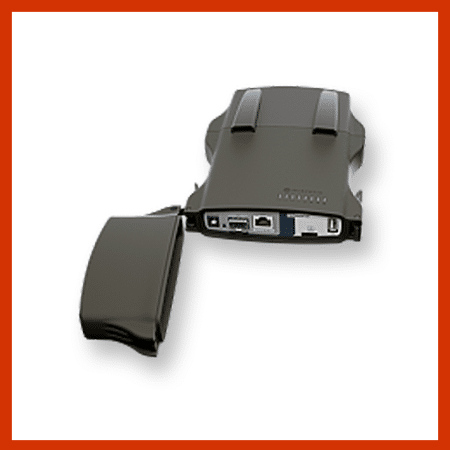

It features a modern dual-core ARM CPU, Gigabit Ethernet and 2.5 Gigabit SFP for fibre connectivity. Furthermore a USB port, and a free miniPCIe slot is included for further customization. You could add an LTE modem for a mobile internet backup – we’ve added a NanoSIM slot on the NetMetal!. Additionally there are other options, like adding a gateway for LoRa IoT setups, such as our R11e-LR9!

A powerful dual-band, dual-chain Wi-Fi 6 radio offers increased speed, stability, security, roaming, power management, and other features, compared to the previous wireless protocols. Two RP-SMA connectors allow adding an antenna of your choice for distances up to 30 kilometres.*. If necessary, you can adapt the NetMetal ax for lower range use with such antennas as our HGO-antenna-OUT screw-on omni antenna unit. It provides 3.3 dBi gain for the 2.4 GHz band and 5.5-7.1 dBi gain for the 5 GHz band.

If you’ve read this far, here’s a little bonus feature: we’ve kept the good old beeper for various alarms or creative outputs.



Specifications

Details
Product code L23UGSR-5HaxD2HaxD-NM
Architecture ARM 64bit
CPU IPQ-5010
CPU core count 2
CPU nominal frequency 800 MHz
RouterOS license 4
Operating System RouterOS v7
Size of RAM 256 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200’000 hours at 25C
Tested ambient temperature -40°C to 70°C

Powering

Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-28 V
Max power consumption 25 W
Max power consumption without attachments 12 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 18-28 V

Wireless specifications

Details
Wireless 2.4 GHz Max data rate 574 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n/ax
Wireless 2.4 GHz chip model IPQ-5010
Wireless 2.4 GHz generation Wi-Fi 6
Wireless 5 GHz Max data rate 2400 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac/ax
Wireless 5 GHz chip model QCN-6102
Wireless 5 GHz generation Wi-Fi 6

Ethernet

Details
10/100/1000 Ethernet ports 1

Fiber

Details
SFP ports 1 (2.5G supported)

Peripherals

Details
Number of SIM slots 1 Modem (Nano SIM)
MiniPCI-e slots 1
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1.5

Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes
Beeper Yes

Additional information

Weight 1.3 kg
Dimensions 36 × 16 × 8 cm
