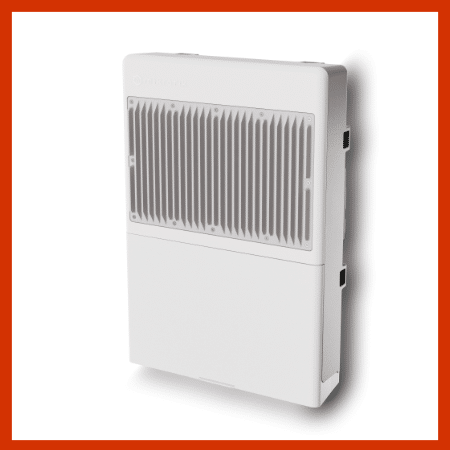

Mikrotik netPower Lite 8P
Power cuts shouldn’t mean downtime. The netPower Lite 8P delivers reliable Power-over-Ethernet even when the grid goes dark. The integrated UPS and smart charger work with your external 24 V battery – and can deliver high-voltage PoE-out even from low-voltage DC sources, making the netPower a perfect match for CCTV, offices, apartment buildings, and smart-city installations.
Just like our other outdoor-friendly gear, this switch is built to endure. With an operating range of –40 °C to +70 °C, the netPower Lite 8P keeps delivering where many devices would already be giving up. The switch can draw up to 181 W total, with a 120 W PoE-Out budget. When incoming power is limited, PoE is prioritized automatically – charging slows down first to keep your essential devices online.
The netPower Lite 8P comes with eight Gigabit Ethernet ports featuring 802.3af/at PoE-Out, plus two 10G SFP+ uplinks for high-speed backhaul. It runs SwOS Lite – fast, efficient, and refreshingly simple to manage. Power input is flexible: just feed 24–57 V DC into the 2-pin terminal.
Built-in UPS support:
effective, reliable, gives you options

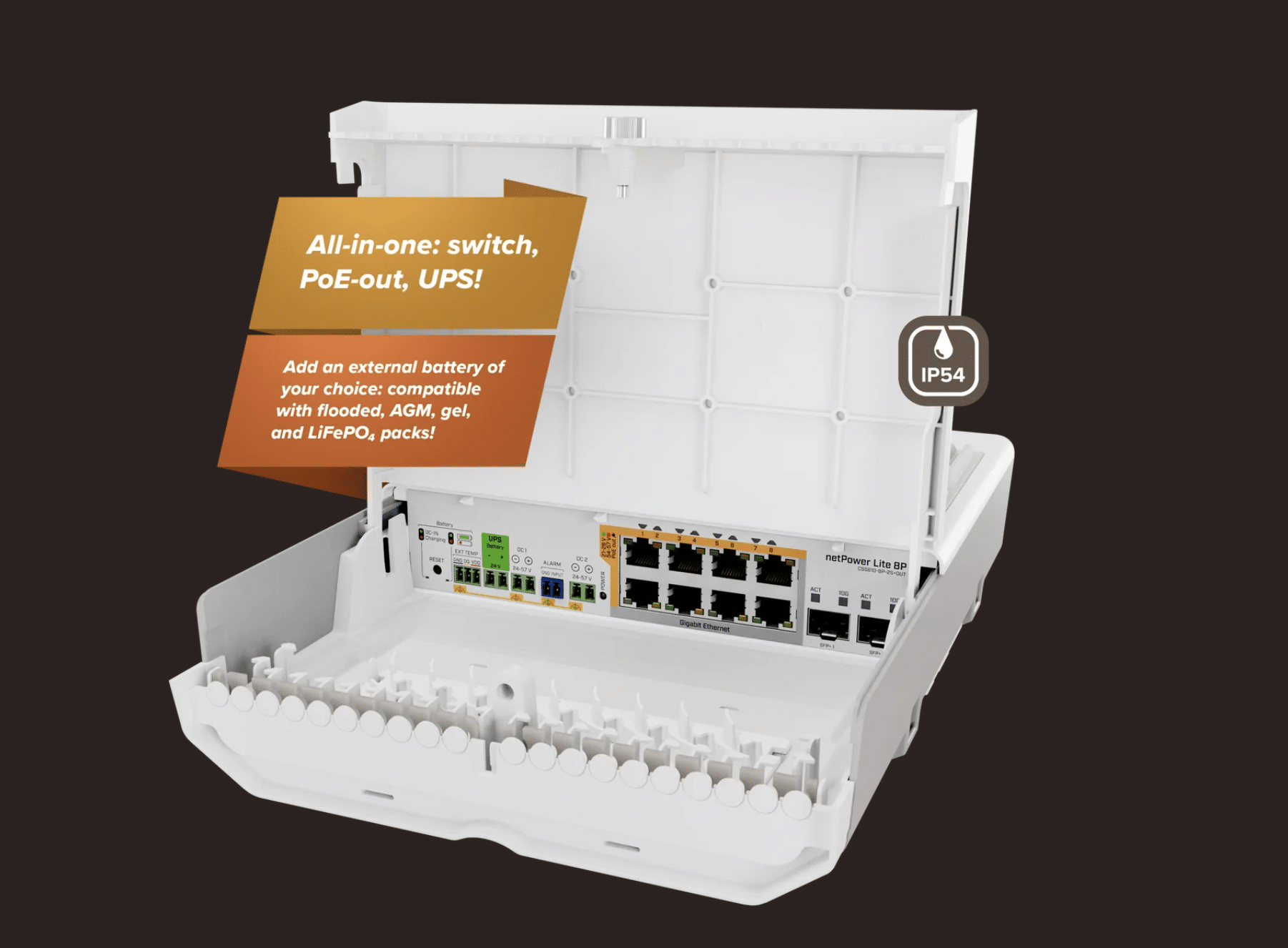

Connect a 24 V nominal battery – typically two 12 V units in series – and the switch instantly becomes a small, efficient UPS. During a power outage, PoE devices stay online without any interruptions.
The charger supports flooded, AGM, and gel-based lead-acid batteries, as well as LiFePO₄ (Lithium Iron Phosphate Battery) packs with proper BMS. The charger subsystem is designed for charging batteries through the 2-pin header in a current range 0.2-1.6 A, and at a voltage range of 20 to 31.7 V.
Charging is handled intelligently through three stages:
A temperature sensor is included; it fine-tunes voltage for lead-acid batteries and blocks charging when temperatures drift outside a safe range. This helps prolong battery life.
Perfect for WISPs, CCTV, apartments, utilities, and smart-city networks
Whenever uptime matters (and budgets!), the netPower Lite 8P gives you a clean, reliable, scalable solution. You get PoE, backup power, smart monitoring, and rugged outdoor performance in one compact device.
So if you value every watt and every second of uptime – the netPower Lite 8P is ready to keep you online…even when the lights go out.
Specifications
- Product code CSS610-8P-2S+OUT
- Switch chip model 88E6193
- Operating System SwOS Lite
- Storage size 64 KB
- Storage type FLASH
- MTBF Approximately 200’000 hours at 25C
- Tested ambient temperature -40°C to 70°C
Powering
- Number of DC inputs 3 (2-pin terminal)
- 2-pin terminal input Voltage 24-57 V (Battery 22-30 V)
- Max power consumption 208 W
- Max power consumption without attachments 9 W
- Cooling type Passive
PoE-out
- PoE-out ports Ether1-Ether8
- PoE out 802.3af/at
- Low voltage PoE-Out current limit 1.0 A
- High voltage PoE-Out current limit 0.64 A
- Total output power 120
Ethernet
- 10/100/1000 Ethernet ports 8
- Number of 1G Ethernet ports with PoE-out 8
Fibre
- SFP+ ports 2
Other
- CPU temperature monitor Yes
- Current Monitor Yes
- Voltage Monitor Yes
Certification & Approvals
- Certification CE, EAC, ROHS
- IP 54
