Description
We are glad to introduce a significant upgrade to our popular OmniTik 5GHz access points!

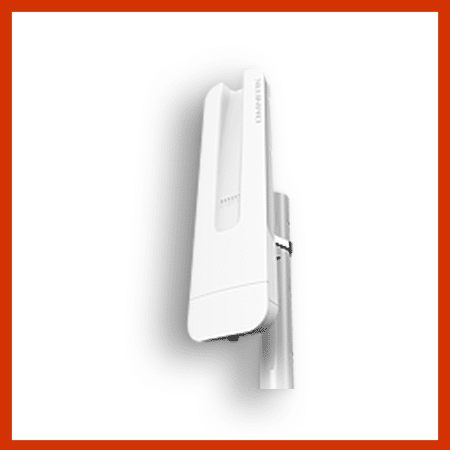

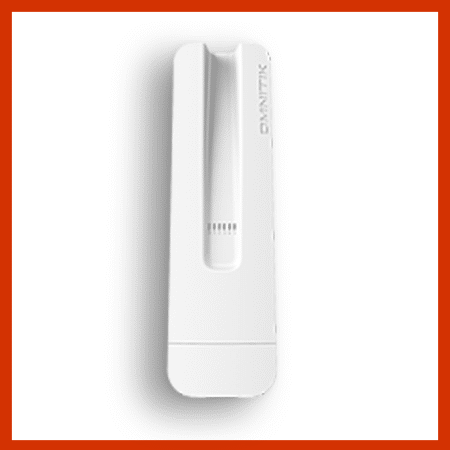

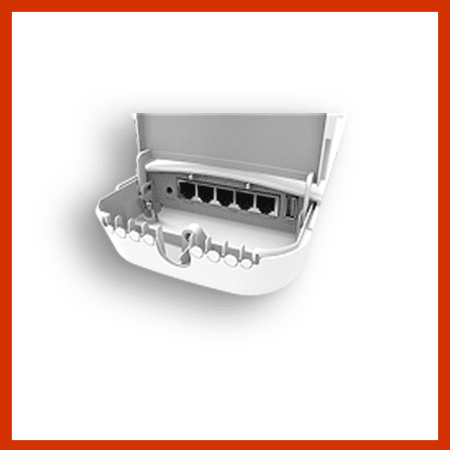

OmniTik 5 PoE ac features five Gigabit Ethernet ports and support for 802.11ac. It’s equipped with a powerful 720MHz CPU, 128MB RAM, high power 1,300mW 802.11a/n/ac Dual Chain wireless (support for AC as well as backwards compatible with regular 802.11a/n CPE) and comes with a new design weatherproof outdoor enclosure, two integrated 7.5dBi 5GHz omni antennas, a power supply, a PoE injector and a mounting kit.
It also supports passive or standard 802.3at/af PoE input/output (12v-57v). Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! It can power 48V devices (like IP camera), if 48V input is used.
– OmniTIK 5 PoE ac US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
– OmniTIK 5 PoE ac (International) supports 5150MHz-5875MHz range.
Product specifications
| Details | |
|---|---|
| Product code | RBOmniTikPG-5HacD |
| CPU nominal frequency | 720 MHz |
| CPU core count | 1 |
| Size of RAM | 128 MB |
| 10/100/1000 Ethernet ports | 5 |
| Wireless standards | 802.11a/n/ac |
| Wireless chip model | QCA9892 |
| Number of USB ports | 1 |
| PoE in | Yes |
| PoE out | 802.3at |
| Supported input voltage | 12 V – 57 V |
| Voltage Monitor | Yes |
| PCB temperature monitor | Yes |
| Dimensions | 416 x 129 x 58 mm |
| Operating System | RouterOS |
| License level | 4 |
| Antenna gain DBI | 7.5 |
| CPU | QCA9557 |
| Max Power consumption | 18W |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Number of chains | 2 |
| Storage type | FLASH |
| Storage size | 16 MB |
