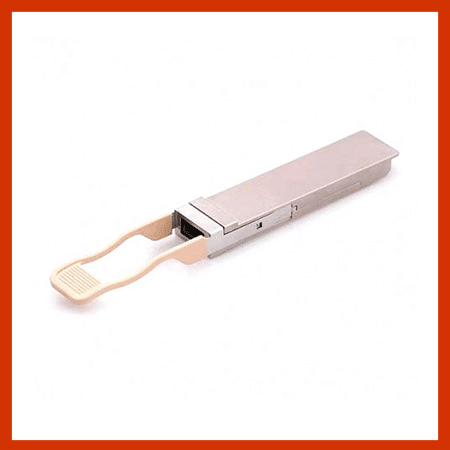

Optcore 100G SFP 100m

Description

The QSFP28 full-duplex optical transceiver offers 4 independent transmit and receive channels, each capable of 25Gb/s operation for an aggregate data rate of 100Gb/s on 70 meters of OM3 or 100 meters of OM4 multi-mode ribbon fiber, using a nominal wavelength of 850nm.
The QSFP28-100G-SR4 transceiver optics uses an MSA compliant 38 pin edge type connector on the electrical interface and uses a 12 fiber MPO (MTP) connector optical interface. The QSFP28 SR4 optical transceiver has built-in DDM functions per QSFP28 MSA, which allows real-time access to the following operating parameters: transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.

Features
• 4 independent full-duplex channels• Up to 26Gb/s data rate per channel• QSFP28 MSA compliant• Up to 70m on OM3 and 100m on OM4 MMF Multimode Fiber• Single 3.3V power supply• Maximum power consumption 3.5W• Single MPO optical connector• Built-in digital diagnostic function• Operating case: 0°C to +70°C• ROHS 6 compliant and lead-free

Specification

Product Series
Fiber Optical Transceiver
Optcore Part Number
QSFP28-100G-SR4

Form Factor
QSFP28
Data Rate
100 Gb/s

Wavelength
850 nm
Fiber Type
MMF

Max Distance
70m@OM3,100m@OM4
Optical Components
VCSEL/PIN

Transmitter Power
-8.4 ~ 2.4 dBm
Extinction ratio
> 2 dB

Receiver Sensitivity
< -10.3 dBm   Receiver Overload > 2.4 dBm

Connector
MPO/MTP
Digital Diagnostic Monitoring
Yes

Environment
Operating: 0°C to 70°CStorage: -40°C to 85°C
Weight
0.05 kg

Application
100G Ethernet transmissionInfiniband FDR, EDRProprietary High-Speed InterconnectionsHigh-performance computing clustersFibre Channel
Compliance
Compliant to IEEE 802.3bmCompliant to SFF-8436RoHS Compliant
