10G SFP+ Bidi Transceiver | 1270nm/1330nm | 10km LC Simplex

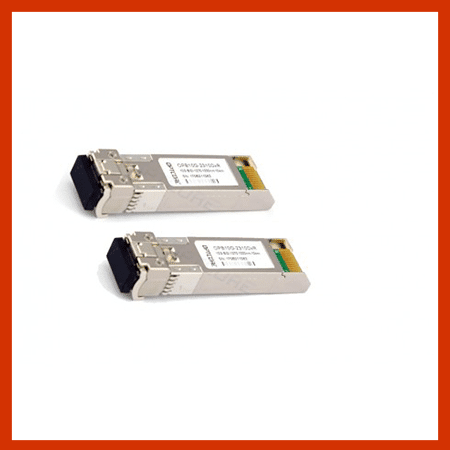

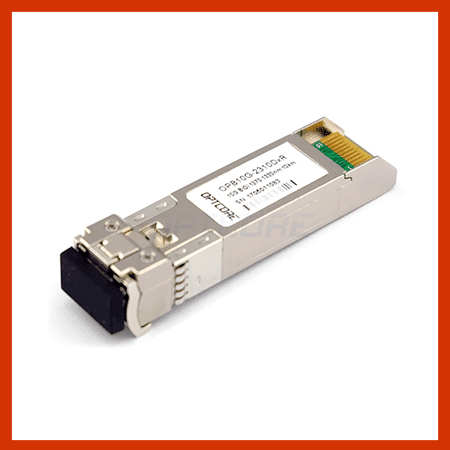

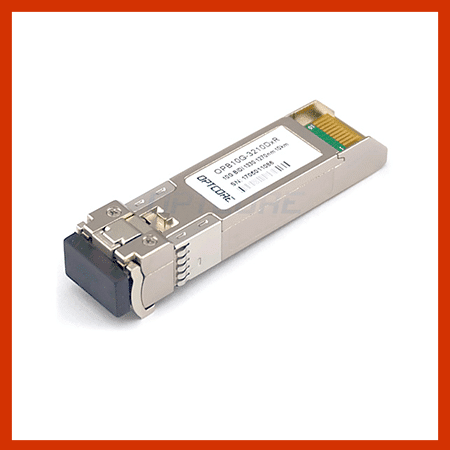

The Optcore OPB10G-2310DCR is a high-performance, hot-pluggable SFP+ Bi-directional (BIDI) transceiver designed for 10Gb/s duplex optical data communications. By integrating a 1270nm DFB transmitter and a 1330nm PIN photo-detector into a single LC optical connector, this module allows for high-speed data transmission over a single-strand single-mode fiber (SMF).
Key Features & Technical Specifications
-
Data Rate: Supports up to 10.3Gb/s bit rates.
-
Link Distance: Reliable connectivity up to 10km over single-mode fiber.
-
Wavelength: 1270nm-TX / 1330nm-RX Bi-Directional technology.
-
Connector Type: Single LC Simplex interface for optimized fiber utilization.
-
Real-Time Monitoring: Enhanced Digital Diagnostic Monitoring (DDM/DDMI) for tracking temperature, voltage, and optical power.
Industry Compliance & Standards
To ensure seamless integration into your network architecture, the OPB10G-2310DCR complies with the following industry benchmarks:
-
SFP+ MSA Specifications: SFF-8431, SFF-8432, and SFF-8472.
-
Ethernet Standards: 10GBASE-LR/LW (IEEE 802.3ae).
-
Fibre Channel: 10G Fibre Channel (1200-SM-LL-L).
-
Safety: Class 1 Laser product (FDA/CDRH and IEC-60825 compliant)
Features
• Hot-pluggable SFP+ footprint
• Electrical interface compliant to SFF-8431
• Compliant with SFF-8472
• 10Gb/s serial optical interface compliant to 802.3ae 10GBASE-LR
• 1270nm DFB transmitter, 1330nm PIN photo-detector
• Distance up to 10km on single mode fiber
• Simplex LC connector
• Built-in digital diagnostic functions
• Single 3.3V power supply
• Metal enclosure, for lower EMI
• ROHS compliant and lead-free
Specification
| Product Series | Fiber Optical Transceiver | Optcore Part Number | OPB10G-2310DCR |
| Form Factor | SFP+ BIDI | Data Rate | 10Gb/s |
| Wavelength | TX:1270 nm/RX:1330 nm | Fiber Type | SMF |
| Max Distance | 10 km | Optical Components | DFB/PIN |
| Transmitter Power | -6 ~ 0 dBm | Extinction ratio | > 3.5 dB |
| Receiver Sensitivity | < -14.4 dBm | Receiver Overload | > 0.5 dBm |
| Connector | Single LC | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.03 kg |
| Application | 10GBASE-LR/10GBASE-LW Ethernet 10G Fiber Channel 10GE Data Center Switches and Routers 10GE Network interface cards and Fiber Media Converters |
Compliance | IEC/EN 61000-4-2, IEC-60825 FDA 21CFR 1040.10 and 1040.11 RoHS |
