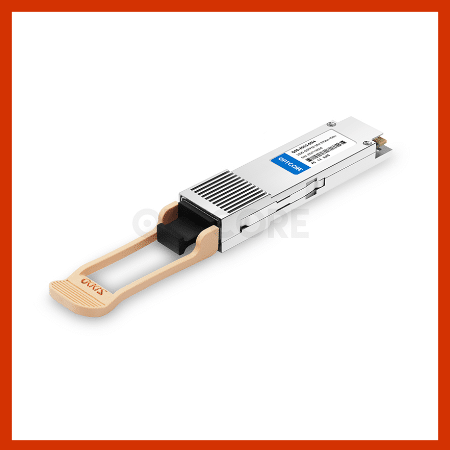

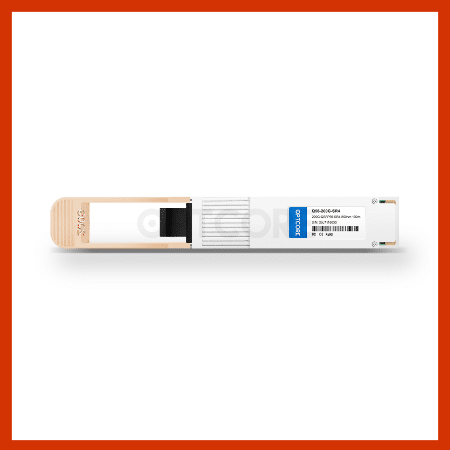

Optcore QSFP56-SR4-200G
This Transceiver is made for Multi-mode Fibre wavelength 850nm & maximum reach of 100m. The connector is MPO/MTP, DOM
A reliable 200GBASE-SR4 QSFP56 optical transceiver. We provide a third-party 200G QSFP56 SR4 transceiver, the perfect way to ensure your switch platform works properly while saving money. This QSFP56 module supports 200Gbps speed for a 100m link distance via OM4 or 70m via OM3 with FEC.
Proven Performance
When performance and reliability are vital, use our high-quality optics to build your network. OPTCORE optics are engineered, produced, and tested in the factory for reliable end-to-end quality.
Proven Compatibility
There’s an easy way to verify compatibility: test in real network devices. OPTCORE optics are tested in multi switch devices for compatibility to ensure flawless functionality.
Enjoy Massive Saving
The OPTCORE transceiver can save you up to 80% on project and networking cabling. You won’t find a better combination of quality and affordability.
Specification
| Compatible OEM Part# | QSFP56-SR4-200G | Manufacturer | OPTCORE |
| Manufacturer Part# | QSFP56-200G-SR4 | Form Factor | QSFP56 |
| Data Rate | 200Gbps (4x 50Gbps) | Wavelength | 850 nm |
| Media Type | MMF | Max Distance | 70m@OM3, 100m@OM4 |
| Transmitter Type | VCSEL | Receiver Type | PIN |
| Transmitter Power | -4.5 ~ 3.0 dBm | Receiver Sensitivity | < -8.4 dBm |
| Extinction Ratio | > 3.0 dB | Receiver Overload | > 4.0 dBm |
| Connector | MPO/MTP-12 | Max Power Consumption | 4.5 W |
| DDM/DOM | Yes | Compliance | RoHS, CE, REACH QSFP56 MSA, SFF-8665, IEEE 802.3bs |
| Environment | Operating Temperature: 0 to 70 °C Storage Temperature: -40 to 85 °C Operating Humidity: 5%~85%, noncondensing Storage Humidity: 5%~95%, noncondensing |
Application | 200G Ethernet transmission Proprietary High-Speed Interconnections High-performance computing clusters |
| Shipping Weight | 0.07 kg | Dimensions (L x W x H) | 118.3 x 18.4 x 8.5 mm |
