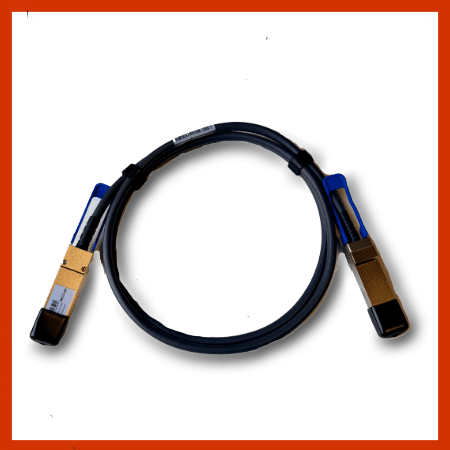

Optcore Q56 200G DAC
Optcore’s 200G QSFP56 DAC cable offers a low-priced replacement for Generic QSFP56-200G-CU 200G passive copper cable without lowering the quality of your network connectivity. Furthermore it is an OPTCORE 200G QSFP56 DAC produced by a trusted third-party manufacturer to provide a high-quality but lower cost& fully compatible replacement.
Additionally this 200G QSFP56 DAC cable has been programmed and tested to work as the original Generic QSFP56-200G-CU 200G QSFP56 DACs. It is suited for interconnecting high-speed 200G networking applications such as servers, switches, data centres, high-performance computing networks, enterprise core, and distribution layers.
Features
• Low cost 200G QSFP56 DAC cable compatible with Generic QSFP56-200G-CU
• Compatible with SFF 8665 and IEEE 802.3cd
• Compliant with IEEE 802.3bj 200GEBASE-CR4
• 4-Channel Full-Duplex Passive Copper Cable
• Optimized construction to minimize insertion loss and cross talk
• Supports aggregate data rates of 200Gbps(PAM4)
Specification
| OEM Part Number | QSFP56-200G-CU-50CM QSFP56-200G-CU-1M QSFP56-200G-CU-2M QSFP56-200G-CU-3M |
Optcore Part Number | Q56-200G-DAC05M-GEN Q56-200G-DAC1M-GEN Q56-200G-DAC2M-GEN Q56-200G-DAC3M-GEN |
| Form Factor | QSFP56 DAC Cable | Data Rate | 200Gbps |
| Passive or actively equalized | Passive | Supply Voltage | 3.3V |
| Cable Length | 0.5~3 meter (1.6~9.8 ft) | Cable impedance | 100 Ω |
| Cable Type | Twinax Copper Cable | Wire Gauge | 26/30AWG |
| Minimum cable bend radius | 45~60 mm | Cable Jacket Type | PVC |
| Connector | QSFP56 to QSFP56 | Digital Diagnostic Monitoring | N/A |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.4 kg |
| Application | Data centers, high-end servers Enterprise wiring closets |
Compliance | IEEE802.3cd InfiniBand EDR SFF-8665, RoHS |
