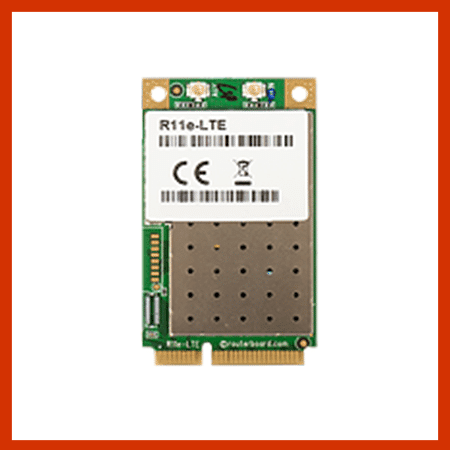

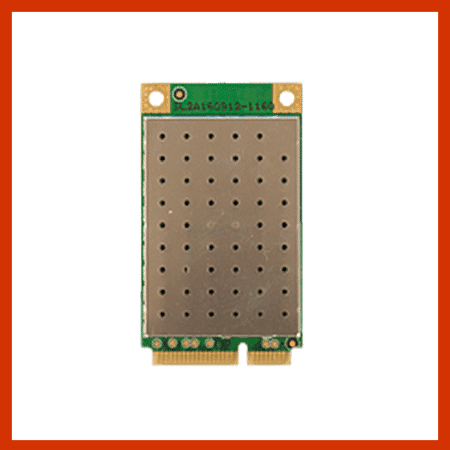

The R11e-LTE is an LTE Cat-4 modem that delivers up to 150Mbps downlink and 50Mbps uplink data rate with 3G and 2G network fallback. This mini-PCIe form factor modem is designed for international bands.
Specifications
| Details |
| Product code |
R11e-LTE |
| MTBF |
Approximately 100’000 hours at 25C |
| Tested ambient temperature |
-30°C .. +70°C |
|
|
Powering
| Details |
| Max power consumption |
3 W |
Mobile
| Details |
| 2G Category |
Class12 |
| 2G bands |
2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) |
| 3G Category |
R7 (21Mbps Downlinks, 5.76Mbps Uplink) |
| 3G bands |
1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz) |
| LTE Category |
4 (150Mbps Downlink, 50Mbps Uplink) |
| LTE FDD bands |
1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) |
| LTE TDD bands |
38 (2600MHz) / 40 (2300MHz) |
