Description

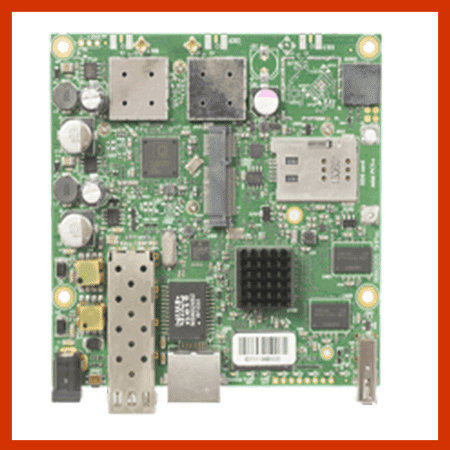

RouterBOARD RB922UAGS-5HPacD is a very versatile wireless router, perfect for assembling your own solution. It supports the new 802.11ac standard for high speed wireless (up to 866Mbit datarate and 20/40/80MHz channels). The device has ports and slots for many uses: 1x SFP cage, miniPCIe slot with SIM for 3G/4G modem or another wireless card, USB port, Gigabit Ethernet port and two MMCX connectors for the built in powerful 1300mW 802.11ac 2×2 radio. Comes with RouterOS L4 (AP) license.
Product specifications
| Details | |
|---|---|
| Product code | RB922UAGS-5HPacD |
| CPU nominal frequency | 720 MHz |
| SFP DDMI | yes |
| CPU core count | 1 |
| Size of RAM | 128 MB |
| 10/100 Ethernet ports | None |
| 10/100/1000 Ethernet ports | 1 |
| MiniPCI slots | 0 |
| MiniPCI-e slots | 1 |
| Wireless chip model | QCA9882-BR4A-R |
| Wireless standards | 802.11ac |
| Number of USB ports | 1 |
| Power Jack | 1 |
| 802.3af support | no |
| Supported input voltage | 8 V – 30 V |
| PoE out | No |
| PoE in | Yes |
| Voltage Monitor | Yes |
| CPU temperature monitor | No |
| PCB temperature monitor | Yes |
| Dimensions | 105x105mm |
| Operating System | RouterOS |
| License level | 4 |
| Antenna gain DBI | No |
| Current Monitor | No |
| CPU | QCA9557-AT4A-R |
| Max Power consumption | 17 W |
| SFP ports | 1 |
| SFP+ ports | None |
| USB slot type | USB type A |
| Number of chains | 2 |
