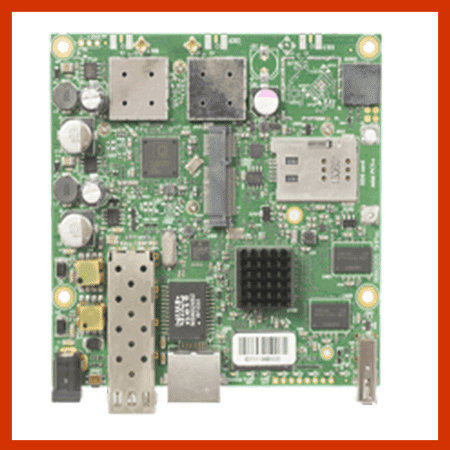

RB922UAGS-5HPacD

The Mikrotik’s high performance routerboard with 720Mhz CPU, 128MB RAM, 1xGigabit Ethernet, 1xSFP cage, 1xminiPCI-e, 1xSIM, onboard 1000mW 802.11ac Two Chain 5Ghz wireless, RouterOS L4 720Mhz CPU, 128MB RAM, 1xGigabit Ethernet, 1xSFP cage, 1xminiPCI-e, 1xSIM, onboard 1000mW 802.11ac Two Chain 5Ghz wireless, RouterOS L4

Out of stock

SKU: RB922UAGS-5HPacD Category:

Description

RouterBOARD RB922UAGS-5HPacD is a very versatile wireless router, perfect for assembling your own solution. It supports the new 802.11ac standard for high speed wireless (up to 866Mbit datarate and 20/40/80MHz channels). The device has ports and slots for many uses: 1x SFP cage, miniPCIe slot with SIM for 3G/4G modem or another wireless card, USB port, Gigabit Ethernet port and two MMCX connectors for the built in powerful 1300mW 802.11ac 2×2 radio. Comes with RouterOS L4 (AP) license.

Product specifications

Details
Product code RB922UAGS-5HPacD
CPU nominal frequency 720 MHz
SFP DDMI yes
CPU core count 1
Size of RAM 128 MB
10/100 Ethernet ports None
10/100/1000 Ethernet ports 1
MiniPCI slots 0
MiniPCI-e slots 1
Wireless chip model QCA9882-BR4A-R
Wireless standards 802.11ac
Number of USB ports 1
Power Jack 1
802.3af support no
Supported input voltage 8 V – 30 V
PoE out No
PoE in Yes
Voltage Monitor Yes
CPU temperature monitor No
PCB temperature monitor Yes
Dimensions 105x105mm
Operating System RouterOS
License level 4
Antenna gain DBI No
Current Monitor No
CPU QCA9557-AT4A-R
Max Power consumption 17 W
SFP ports 1
SFP+ ports None
USB slot type USB type A
Number of chains 2

Additional information

Weight 0.5 kg
Dimensions 2 × 6 × 6 cm
