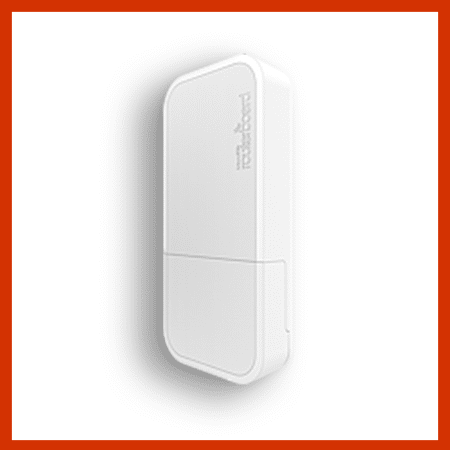

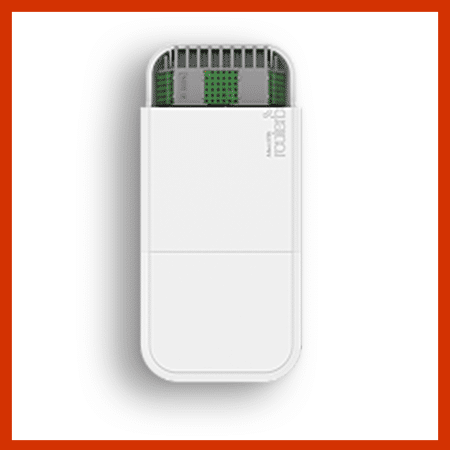

Mikrotik wAP 60Gx3 AP
The wAP 60Gx3 AP is a new access point model for the 60 GHz spectrum. Compared with the regular wAP 60G AP, this new model has a completely new antenna array. Support for a much wider angle of coverage and is optimized specifically for multi-point operation.
The 96 antenna elements work with beam-forming technology to provide connectivity for up to eight 60 GHz client devices at the same time. This means a 180 degree field of view.
Build a cost effective point to multi-point setup in the clean 60 GHz wireless spectrum, at a fraction of the cost.
Two wAP 60Gx3 AP units can be used in point-to-point configurations as well.
Specifications
| Details |
| Product code |
RBwAPG-60ad-SA |
| Architecture |
ARM 32bit |
| CPU |
IPQ-4019 |
| CPU core count |
4 |
| CPU nominal frequency |
716 MHz |
| Dimensions |
185 x 85 x 30 mm |
| License level |
4 |
| Operating System |
RouterOS |
| Size of RAM |
256 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| Tested ambient temperature |
-40°C to 70°C |
|
|
Powering
| Details |
| PoE in |
802.3af/at |
| PoE in input Voltage |
20-57 V |
| Number of DC inputs |
2 (DC jack, PoE-IN) |
| DC jack input Voltage |
12-57 V |
| Max power consumption |
11 W |
Ethernet
| Details |
| 10/100/1000 Ethernet ports |
1 |
