wAP LTE kit

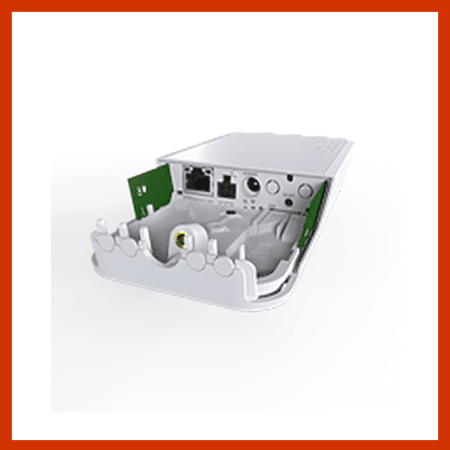

The wAP LTE Kit-US is a small weatherproof wireless access point. It has a built in cellular modem that supports 3G and 4G (LTE) connectivity. The wAP’s built-in 802.11b/g/n wireless allows access from your phone or any other wireless device. The wAP LTE also has one 10/100 Ethernet LAN port for your wired devices.
The LTE card is connected to two internal antennas ,but it has provision to add your own external LTE antenna for larger coverage. Unit has several powering options – 9-30v PoE-IN by Ethernet port plus DC jack and Automotive connector. The latter is very handy in mobile devices like car, bus or train.
The RBwAPR-2nD&EG25-LTE-US includes LTE modem that supports LTE bands & is certified by mobile operators in United States, Canada.
| Details |
| Product code |
RBwAPR-2nD&EG25-LTE-US |
| Architecture |
MIPSBE |
| CPU |
QCA9531 |
| CPU core count |
1 |
| CPU nominal frequency |
650 MHz |
| Dimensions |
185 x 85 x 30 mm |
| License level |
4 |
| Operating System |
RouterOS |
| Size of RAM |
64 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| Tested ambient temperature |
-40°C .. +60°C tested |
|
|
Powering
| Details |
| Max Power consumption |
8W |
| PoE in |
Passive PoE |
| PoE in input Voltage |
9-30 V |
| Number of DC inputs |
3 (DC jack, PoE-IN, Automotive) |
| DC jack input Voltage |
9-30 V |
| Automotive input Voltage |
9-30 V |
Mobile
| Details |
| 3G Category |
R8 (42.2Mbps Downlink, 5.76Mbps Uplink) / R7 (21Mbps Downlinks, 5.76Mbps Uplink) |
| LTE Category |
4 (150Mbps Downlink, 50Mbps Uplink) |
| LTE FDD bands |
2 (1900MHz) / 4 (1700MHz) / 5 (850MHz) / 12 (700MHz) |
Wireless
| Details |
| Wireless 2.4 GHz number of chains |
2 |
| Wireless 2.4 GHz standards |
802.11b/g/n |
| Antenna gain dBi for 2.4 GHz |
2 |
| Wireless 2.4 GHz chip model |
QCA9531 |
Ethernet
| Details |
| 10/100 Ethernet ports |
1 |
Peripherals
| Details |
| Number of SIM slots |
1 Modem (Mini SIM) |
| MiniPCI-e slots |
1 |
Other
| Details |
| PCB temperature monitor |
Yes |
| Voltage Monitor |
Yes |
Wireless specifications
| 2.4 GHz |
Transmit (dBm) |
Receive Sensitivity |
| 1MBit/s |
22 |
-96 |
| 11MBit/s |
22 |
-89 |
| 6MBit/s |
20 |
-93 |
| 54MBit/s |
18 |
-74 |
| MCS0 |
20 |
-93 |
| MCS7 |
16 |
-71 |
