Description

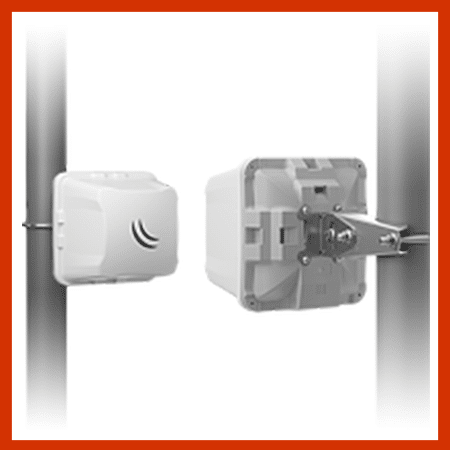

Wireless Wire Cube

The arrival of wireless wire cube is great news for those managing networks in a large, busy area (like a park or a stadium), I am sure you have probably experienced all kinds of problems – not enough bandwidth for large number of users, massive interference, signal loss during bad weather, etc.

Laying wires everywhere can be clumsy and expensive, sometimes even impossible. Finally, there is a simple, secure and extremely cost-effective solution; the Wireless Wire Cube.

It is a kit of two pre-paired devices that form a blazing fast AES encrypted wireless connection. Pure plug-and-play: just point the Cubes at one another and power them on!

The 60 GHz frequency is unaffected by the crowded wireless spectrum, it offers high speed and capacity. Traditional 60 GHz devices, however, can have limited connectivity during bad weather. But not the Wireless Wire Cube! It features an automatic 5 GHz backup connection, so you don’t have to worry about any downtime.

No need for additional configuration – the 5 GHz backup connection works out-of-the-box! The Cube will take care of your connection at all times.

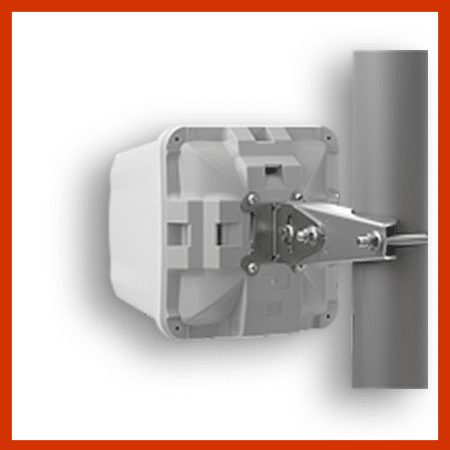

It can easily cover a distance of 800 meters and reach fibre like speed. The Сube form-factor has been designed with function and durability in mind. And it attracts less unwanted attention due to its size and shape. The box includes two Cube 60G ac devices that are already paired together, power supplies, PoE injectors and mounting kits for both devices.

Specifications

Details
Product code	CubeG-5ac60adpair
Architecture	ARM 32bit
CPU	IPQ-4019
CPU core count	4
CPU nominal frequency	716 MHz
RouterOS license	3
Size of RAM	256 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 200’000 hours at 25C
Tested ambient temperature	-40°C to 70°C

Powering

Details
PoE in	802.3af/at
PoE in input Voltage	12-57 V
Number of DC inputs	1 (PoE-IN)
Max power consumption	9 W
Max power consumption without attachments	9 W
FAN count	Passive

Wireless specifications

Details
Wireless 5 GHz Max data rate	433 Mbit/s
Wireless 5 GHz number of chains	1
Wireless 5 GHz standards	802.11a/n/ac
Antenna gain dBi for 5 GHz	11.5
Wireless 5 GHz chip model	IPQ-4019
Wireless 5 GHz generation	Wi-Fi 5

Ethernet

Details
10/100/1000 Ethernet ports	1

Certification & Approvals

Details
Certification	CE, FCC, IC, EAC, ROHS

Wireless specifications

5 GHz	Transmit (dBm)	Receive Sensitivity
6MBit/s	22	-93
54MBit/s	18	-74
MCS0	22	-93
MCS7	17	-71
MCS9	15	-68
