Description
The wsAP ac lite is a perfect access point (AP) for hospitality networks (hotels, shopping malls, hospitals, airports etc.). It has an unobtrusive case that fits in standard wall power sockets. This way, the unit doesn’t attract attention and blends into any environment.

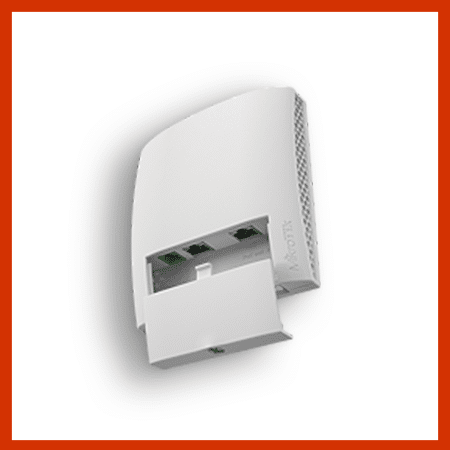

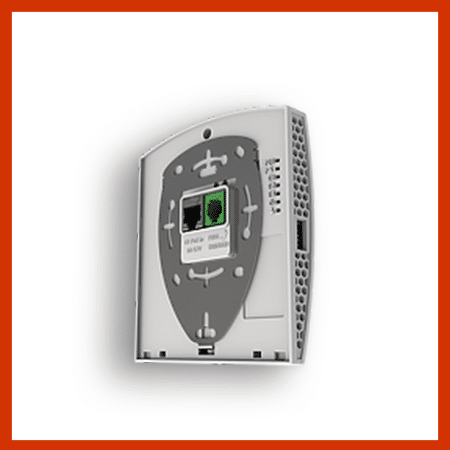

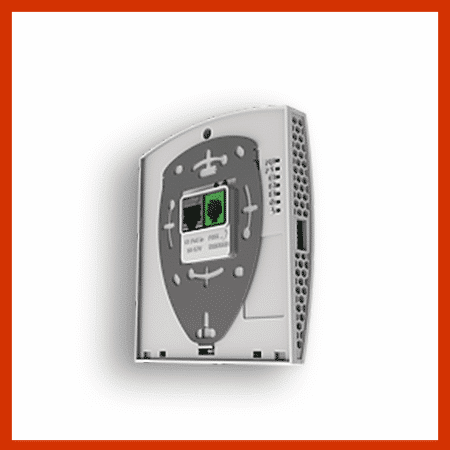

The wsAP has three Ethernet ports: one on the back side for easy PoE-in, and two LAN ports behind the front door. The device provides Dual concurrent 2.4 GHz and 5 GHz WiFi coverage, it supports 802.11ac, as well as legacy standards. A USB 2.0 port is provided, to charge mobile devices or for storage.

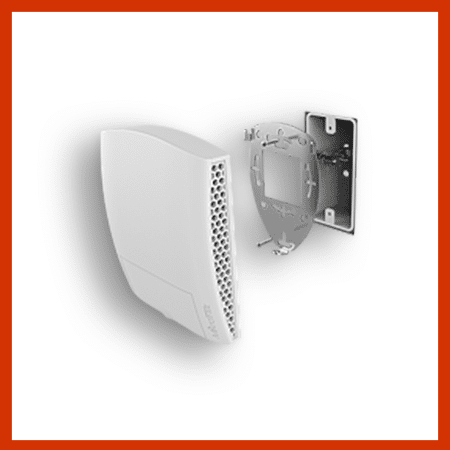

The device also has a pass through telephone jack (RJ11) to connect a desktop phone in a hotel room, for easier cable management. As a separate accessory you can order a special screw set (product code K50), that ensures the bottom door can only be opened by the owner. Mounting bracket fits US and EU most popular telecomunication sockets.
Specifications
| Details |
| Product code |
RBwsAP-5Hac2nD |
| Architecture |
MIPSBE |
| CPU |
QCA9531 |
| CPU core count |
1 |
| CPU nominal frequency |
650 MHz |
| Dimensions |
112 x 126 x 30 mm |
| License level |
4 |
| Operating System |
RouterOS |
| Size of RAM |
64 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| Tested ambient temperature |
-40°C to 60°C |
|
|
Powering
| Details |
| PoE in |
802.3af/at |
| PoE in input Voltage |
18-57 V |
| PoE out |
Passive PoE |
| PoE-out ports |
Ether3 |
| Number of DC inputs |
1 (PoE-IN) |
| Max out per port output (input > 30 V) |
420 mA |
| Max out per port output (input < 30 V) |
420 mA |
| Max total out (A) |
420 mA |
| Max power consumption |
20 W |
| Max power consumption without attachments |
6 W |
Wireless
| Details |
| AC speed |
AC750 |
| Wireless 2.4 GHz Max data rate |
300 Mbit/s |
| Wireless 2.4 GHz number of chains |
2 |
| Wireless 2.4 GHz standards |
802.11b/g/n |
| Antenna gain dBi for 2.4 GHz |
1.5 |
| Wireless 2.4 GHz chip model |
QCA9531 |
| Wireless 2.4 GHz generation |
Wi-Fi 4 |
| Wireless 5 GHz Max data rate |
433 Mbit/s |
| Wireless 5 GHz number of chains |
1 |
| Wireless 5 GHz standards |
802.11a/n/ac |
| Antenna gain dBi for 5 GHz |
3 |
| Wireless 5 GHz chip model |
QCA-9887 |
| Wireless 5 GHz generation |
Wi-Fi 5 |
Ethernet
| Details |
| 10/100 Ethernet ports |
3 |
Peripherals
| Details |
| Number of USB ports |
1 |
| USB Power Reset |
Yes |
| USB slot type |
USB type A |
| Max USB current (A) |
0.5 |
Other
Certification & Approvals
| Details |
| Certification |
CE/RED, FCC, IC, EAC, ROHS |
Wireless specifications
| 2.4 GHz |
Transmit (dBm) |
Receive Sensitivity |
| 1MBit/s |
22 |
-96 |
| 11MBit/s |
22 |
-89 |
| 6MBit/s |
20 |
-93 |
| 54MBit/s |
18 |
-74 |
| MCS0 |
20 |
-93 |
| MCS7 |
16 |
-71 |
| 5 GHz |
Transmit (dBm) |
Receive Sensitivity |
| 6MBit/s |
23 |
-93 |
| 54MBit/s |
20 |
-75 |
| MCS0 |
23 |
-93 |
| MCS7 |
19 |
-71 |
| MCS9 |
16 |
-63 |
