Description

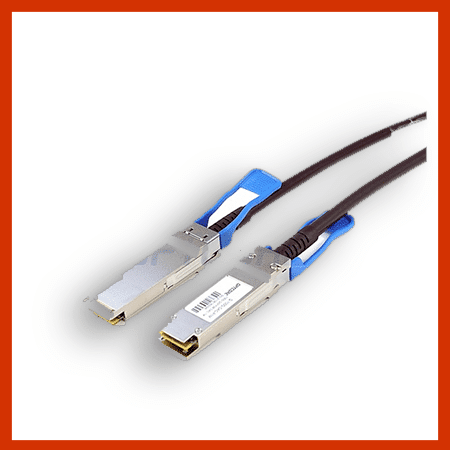

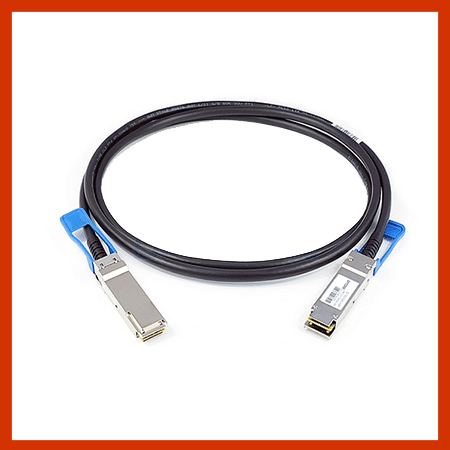

The QSFP28 DAC copper cable is designed for 100Gb/s high-speed interconnecting networking applications such as high-performance computing (HPC), data center and network storage markets.
The QSFP-100G-DAC-P3M fully complies with QSFP28 Multi-Source Agreement (MSA) standards SFF-8665, IEEE 802.3bj and Infiniband EDR. It is developed specifically as a cost-effective and lower-power replacement to 100G QSFP28 transceiver optics and QSFP28 active optical cable (QSFP+ AOC) for short distances.
Features
• Compliant with SFF-8665/SFF-8679
• Compliant with IEEE 802.3bj
• 4 independent full-duplex channels
• Up to 25.78 Gbps data rate per channel
• Up to 5m transmission
• Single 3.3V power supply
• Low insertion loss
• RoHS Compliant and Lead-Free
Specification
| Product Series | 100G QSFP28 DAC Cable | Optcore Part Number | QSFP-100G-DAC-P3M |
| Form Factor | QSFP28 to QSFP28 | Data Rate | 100 Gb/s |
| Passive or actively equalized | Passive | Supply Voltage | 3.3V |
| Cable Length | 3 meter | Cable impedance | 100 Ω |
| Cable Type | Twinax | Wire Gauge | 26AWG |
| Minimum cable bend radius | 45 mm | Cable Jacket Type | PVC |
| Connector | QSFP28/QSFP28 | Digital Diagnostic Monitoring | N/A |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.4 kg |
| Application | Switches, servers, and routers Data Center networks Storage area networks High-performance computing Telecommunication and network infrastructure Fibre Channel over Ethernet |
Compliance | IEEE802.3bj InfiniBand EDR SFF-8665, RoHS |
