BaseBox 2

CAD$108.67
USD$80.00

2.4Ghz integrated AP/Backbone/CPE, 2xRPSMA connectors, 1000mW TX power, miniPCI-e slot, Gigabit Ethernet

Out of stock

SKU: rb912uag-2hpnd-out Category:

Description

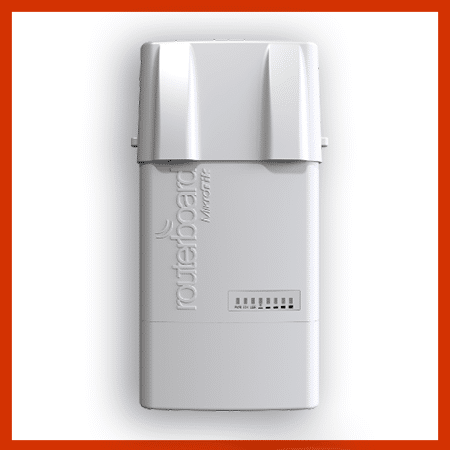

The BaseBox2 in an outdoor 2.4Ghz wireless device, based on our popular RB912 model, fitted with two SMA connectors for antennas, and a cable hood for protection against moisture. Also available are three additional places for antenna connectors, in case you wish to use the BaseBox miniPCIe slot for one more wireless interface to make a dual band device, or a 3G/4G modem.

The case can be opened with one hand, and is protected against the elements. USB, Ethernet and a Grounding wire exits are provided on the bottom, behind a protective door.

Comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. Package also includes a PoE injector and power supply unit.

Product specifications

Details
Product code RB912UAG-2HPnD-OUT
CPU nominal frequency 600 MHz
CPU core count 1
Size of RAM 64 MB
10/100 Ethernet ports 0
10/100/1000 Ethernet ports 1
MiniPCI slots 0
MiniPCI-e slots 1
Wireless chip model AR9342-BL1A
Wireless standards 802.11b/g/n
Number of USB ports 1
Power Jack 0
PoE in Yes
Voltage Monitor Yes
CPU temperature monitor No
PCB temperature monitor Yes
License level 4
Antenna gain DBI No
Current Monitor No
CPU AR9342-BL1A
SFP ports 0
SFP+ ports 0
USB slot type USB type A
Number of chains 2
Serial port None

Additional information

Weight 0.8 kg
Dimensions 8 × 36 × 16 cm
