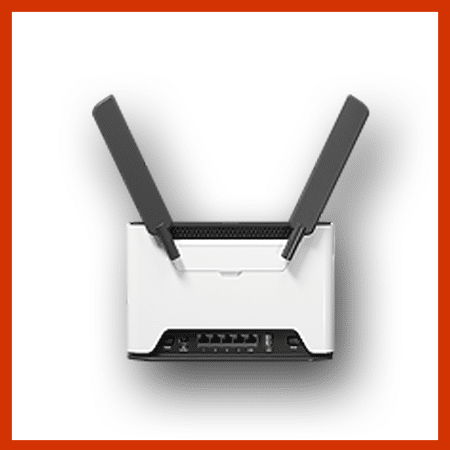

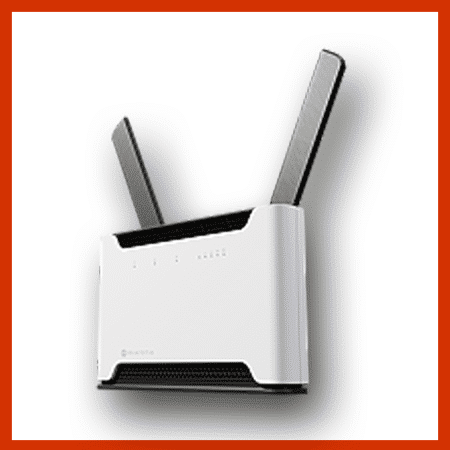

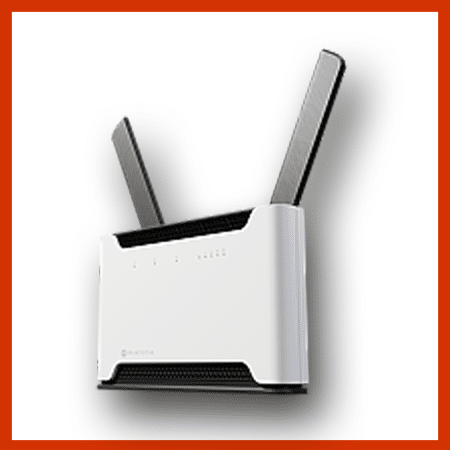

Chateau 5G R17 ax

CAD$468.86

The Mikrotik Chateau 5G R17 ax; gets you online instantly & with speed. Tested with Telus 5G network with excellent results.

The iconic MikroTik 5G home router gets its smartest upgrade yet.

  • ARM 64bit CPU
  • 2.5G Ethernet Port.
  • 5G Revision 17
  • WIFI6

In stock

Description

Mikrotik Chateau 5G R17 ax

Chateau 5G ax R17 may look familiar – the sleek design, the mighty dual-band Wi-Fi 6 coverage, and all the impressive RouterOS v7 features. But under the hood, everything’s been pushed further.

Now powered by 5G Release 17 cutting-edge modem, Chateau takes full advantage of the latest mobile technologies, including advanced carrier aggregation combinations. That means faster down-link speeds, increased signal stability and responsiveness, even in regions where the mobile tower is far away. Wherever you are, Chateau finds the signal sweet spot.

With four powerful built-in LTE/5G antennas and two external dual-chain Wi-Fi 6 antennas, Chateau gives you great performance for download and upload even in a busy, crowded environment:

• Smart aggregation with wide regional FDD + TDD band support;

• Extra strong signal pickup thanks to 4×4 MIMO;

• Wi-Fi coverage designed for homes of all sizes, including multi-floor setups.

Chateau runs RouterOS v7, MikroTik’s industrial-grade operating system used by ISPs and sysadmins around the world – but with a simple user-friendly interface that anyone can learn to use. And if you’re not sure about diving deep into the world of networking – no worries, we also have iOS/Android app for even easier installation!

Set up a secure VPN. Optimize streaming. Limit bandwidth. Create VLANs. Block sites. Send SMS alerts when usage peaks. All without subscriptions or paywalls.

Specifications

Details
Product code S53UG+5HaxD2HaxD-TC&RG650E-EU
Architecture ARM 64bit
CPU IPQ-6010
CPU core count 4
CPU nominal frequency 864-1800 MHz
Switch chip model IPQ-6010
RouterOS license 4
Operating System RouterOS v7
Size of RAM 1 GB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200’000 hours at 25C
Tested ambient temperature -40°C to 70°C
IPsec hardware acceleration Yes

Powering

Details
Number of DC inputs 1 (DC jack)
DC jack input Voltage 12-28 V
Max power consumption 27 W
Max power consumption without attachments 18 W
Cooling type Passive

Mobile

Details
3G Category R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
3G bands 1 (2100MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category 20 (2.0 Gbps Downlink, 211 Mbps Uplink)
MIMO DL 4×4
MIMO UL 1×1 (5G SA MIMO UL 2×2)
LTE FDD bands 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz) / 32 (1500 MHz)
LTE TDD bands 38 (2600MHz) / 41 (2500MHz) / 42 (3500MHz) / 40 (2300MHz) / 43 (3700MHz)
5G NSA FDD bands 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 26 (850 MHz) / 28 (700 MHz) / 67 (700 MHz) / 75 (1500 MHz) / 76 (1500 MHz)
5G NSA TDD bands 38 (2600 MHz) / 40 (2300 MHz) / 41 (2500 MHz) / 77 (3700 MHz) / 78 (3500 MHz)
5G SA FDD bands 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 26 (850 MHz) / 28 (700 MHz) / 67 (700 MHz) / 75 (1500 MHz) / 76 (1500 MHz)
5G SA TDD bands 38 (2600 MHz) / 40 (2300 MHz) / 41 (2500 MHz) / 77 (3700 MHz) / 78 (3500 MHz)
TAC 86896506

Wireless specifications

Details
Wireless 2.4 GHz Max data rate 574 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz 3
Wireless 2.4 GHz chip model QCN-5022
Wireless 2.4 GHz generation Wi-Fi 6
Wireless 5 GHz Max data rate 1200 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac/ax
Antenna gain dBi for 5 GHz 6
Wireless 5 GHz chip model QCN-5052
Wireless 5 GHz generation Wi-Fi 6

Ethernet

Details
10/100/1000 Ethernet ports 4
Number of 2.5G Ethernet ports 1

Peripherals

Details
Number of SIM slots 1 Modem (Micro SIM)
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1.5

Other

Details
CPU temperature monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes
Mode button Yes
eSIM Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP 20

Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 23 -100
11MBit/s 23 -94
6MBit/s 24 -96
54MBit/s 21 -80
MCS0 24 -96
MCS7 20 -75
MCS9 19 -70
MCS11 17 -67
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 24 -96
54MBit/s 21 -80
MCS0 24 -96
MCS7 20 -75
MCS9 19 -70
MCS11 17 -67

Additional information

Weight 1.4 kg
Dimensions 36 × 26 × 10 cm
