CRS418-8P-8G-2S+5axQ2axQ-RM

$683.59 CAD

+ same day shipping

The Wi-Fi version of CRS418 with our strongest 4×4 MIMO Wi-Fi 6, 16x Gigabit Ethernet ports, 2x 10G SFP+ ports.

  • Quad-core 2.2 GHz ARM CPU
  • L3 HW offloading
  • a Gigabit management port with a direct CPU line.
  • PoE-out

Availability: In stock

SKU: CRS418-8P-8G-2S+5axQ2axQ-RM Categories: , Brand:
Guaranteed Safe Checkout

Mikrotik CRS418-8P-8G-2S+RM

Why settle for just a simple switch when you can have PoE-out, high-speed fiber uplinks, USB storage compatibility, advanced network control/monitoring, and enough processing power even for some routing or L3 HW offloading… in a single 1U device and for the best price on the market?

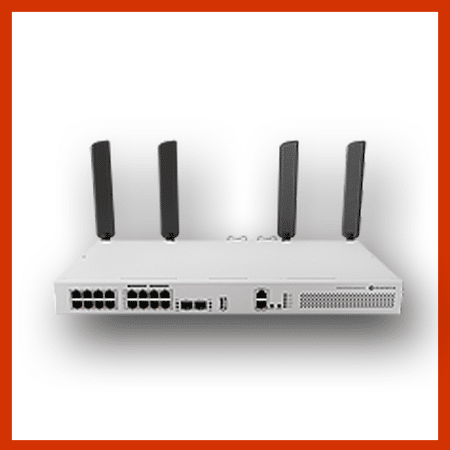

The CRS418-8P-8G-2S+RM combines 16 Gigabit Ethernet ports (eight of them with PoE-out!), two 10G SFP+ cages, USB 3 connectivity, and a powerful quad-core 2.2 GHz CPU in a clean, durable rackmount enclosure. Also, there’s a Gigabit management port with a direct CPU line.

This is a serious upgrade for anyone looking to replace a jungle of devices with one smart multitasker – built for real routing workloads, high-bandwidth uplinks, and clean cable management. Whether you’re powering up access points and CCTV cameras, running a fast NAS with a bunch of modern workstations, or managing the routing in your mid-sized office, CRS418 handles it all with ease – and on a budget!

Wi-Fi where it matters

2CRS418-8P-8G-2S+5axQ2axQ-RM The all-in-one switch/routing champion also delivers 4×4 MIMO dual-band Wi-Fi 6 – for fast, reliable connectivity wherever you need it. The perfect solution to simplify basement server room setups or medium-sized offices on a tight budget – now you don’t need to carry a separate access point!

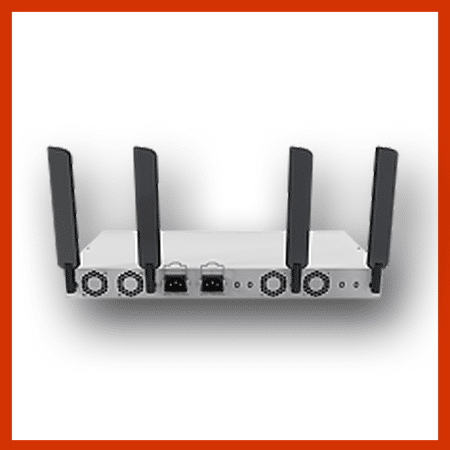

We know rackmounts are not famous for great wireless coverage. That’s why the CRS418 Wi-Fi edition includes dedicated holes in the back for pigtails, so you can place antennas outside the case if needed.

Specifications

Details
Product code CRS418-8P-8G-2S+5axQ2axQ-RM
Architecture ARM 64bit
CPU IPQ-8072A
CPU core count 4
CPU nominal frequency 2208 MHz
Switch chip model 98DX226S
RouterOS license 5
Operating System RouterOS v7
Size of RAM 1 GB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200’000 hours at 25C
Tested ambient temperature -20°C to 70°C
IPsec hardware acceleration Yes
Suggested price $499.00

Powering

Details
Number of AC inputs 2
AC input range 100-240
Number of PSU slots 2
Frequency (Hz) 50-60
Max power consumption 227 W
Max power consumption without attachments 43 W
Cooling type 4 fans

PoE-out

Details
PoE-out ports Ether9-Ether16
PoE out 802.3af/at
Low voltage PoE-Out current limit 1.1 A
High voltage PoE-Out current limit 0.56 A
Total output power 150

Wireless specifications

Details
Wireless 2.4 GHz Max data rate 1148 Mbit/s
Wireless 2.4 GHz number of chains 4
Wireless 2.4 GHz standards 802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz 5
Wireless 2.4 GHz chip model QCN-5024
Wireless 2.4 GHz generation Wi-Fi 6
Wireless 5 GHz Max data rate 2400 Mbit/s
Wireless 5 GHz number of chains 4
Wireless 5 GHz standards 802.11a/n/ac/ax
Antenna gain dBi for 5 GHz 6
Wireless 5 GHz chip model QCN-5054
Wireless 5 GHz generation Wi-Fi 6

Ethernet

Details
10/100/1000 Ethernet ports 17
Number of 1G Ethernet ports with PoE-out 8

Fibre

Details
SFP+ ports 2

Peripherals

Details
Serial console port RJ45
Number of USB ports 1
USB Power Reset Yes
USB slot type USB 3.0 type A
Max USB current (A) 1
Weight 3.8 kg
Dimensions 60 × 40 × 14 cm
