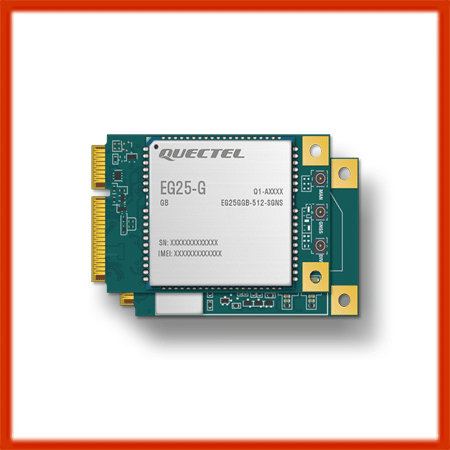

The EG25-G Mini PCIe is an LTE category 4 module in a standard PCI Express^® Mini Card form factor measuring 51.0mm x 30.0mm x 4.9mm, which meets the 3GPP Release 11 standard.

The radio delivers maximum down-link rates of 150Mbps and up-link rates of 50Mbps under LTE. The EG25-G Mini PCIe supports a range of applications that requires fast and reliable transmission of large amounts of data, and backward compatibility with existing EDGE and GSM/GPRS networks. This ensures connection even in remote areas without 3G or 4G coverage. Furthermore, the implemented multiple-input multiple-output (MIMO) technology meets demands for data rate and link reliability.

The EG25-G Mini PCIe supports Qualcomm  IZat location technology Gen8C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and QZSS), and the optional multi-constellation GNSS receiver greatly simplifies product design and provides quicker, more accurate and dependable positioning. A wide range of internet protocols, industry-standard interfaces and functionalities (such as USB serial drivers for Windows 7/8/8.1/10/11, Linux, Android and eCall) allow the module to serve a wide range of IoT applications such as industrial routers, industrial PDAs, rugged tablet PCs, and digital signage.

• LTE Cat 4 module
• Dimensions: 51.0mm x 30.0mm x 4.9mm
• Weight 9.8g
• Standard PCI Express® Mini Card form factor (Mini PCIe)
• Max. 150Mbps downlink / 50Mbps uplink under LTE
• Extended temperature range of -40°C to +80°C
