Mikrotik GPERx6
Hybrid cable advantage

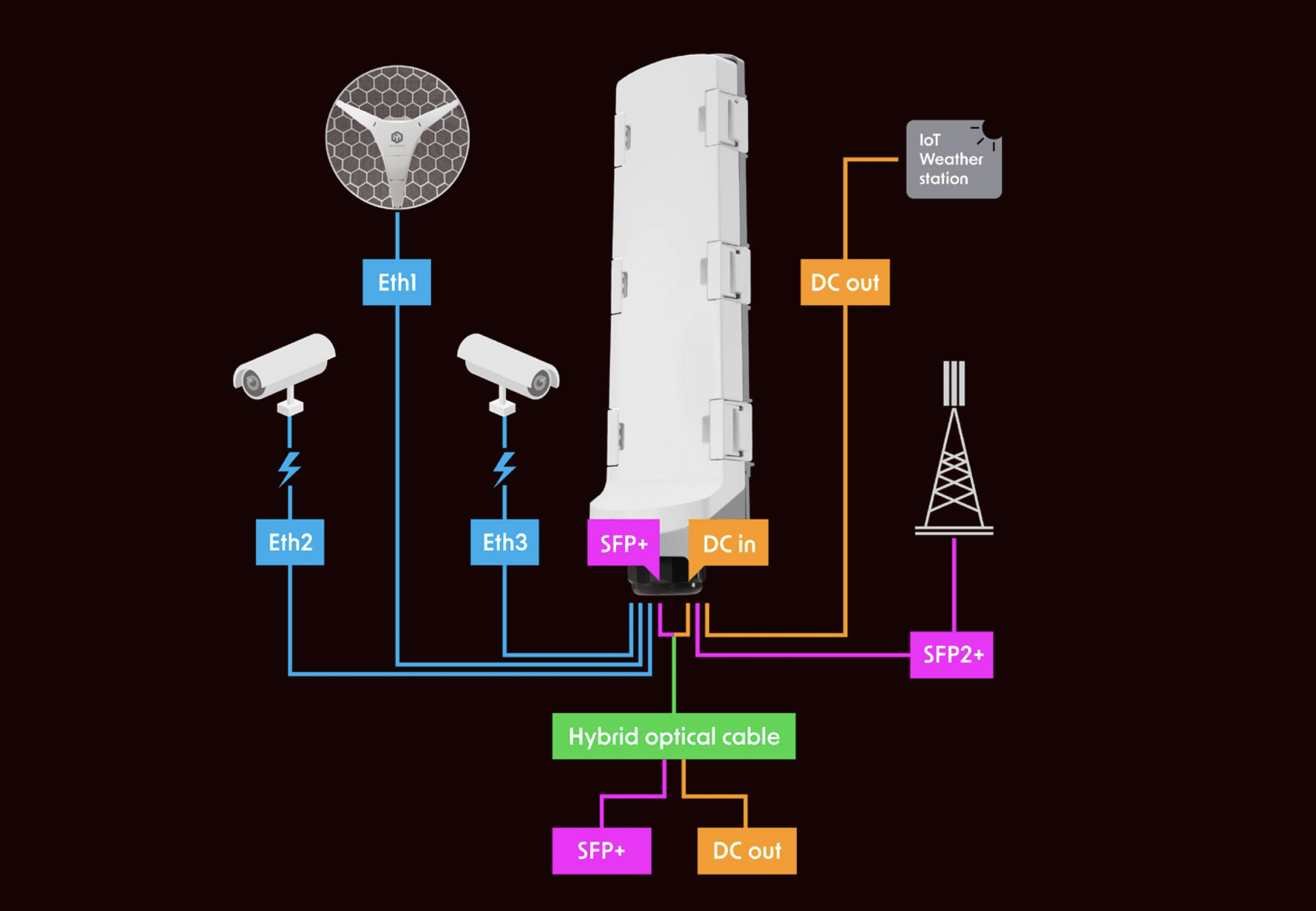

With hybrid fiber + copper cables, the GPERx6 becomes a power-and-data lifeline:
With hybrid fiber + copper cables, the GPERx6 becomes a power-and-data lifeline:
- Fiber strands carry your high-speed uplink;
- Copper conductors deliver DC power;
- At the far end, the GPERx6 splits it all:
- SFP+ uplinks for data;
- PoE-out for cameras or access points;
- DC-out for IoT devices or special hardware.

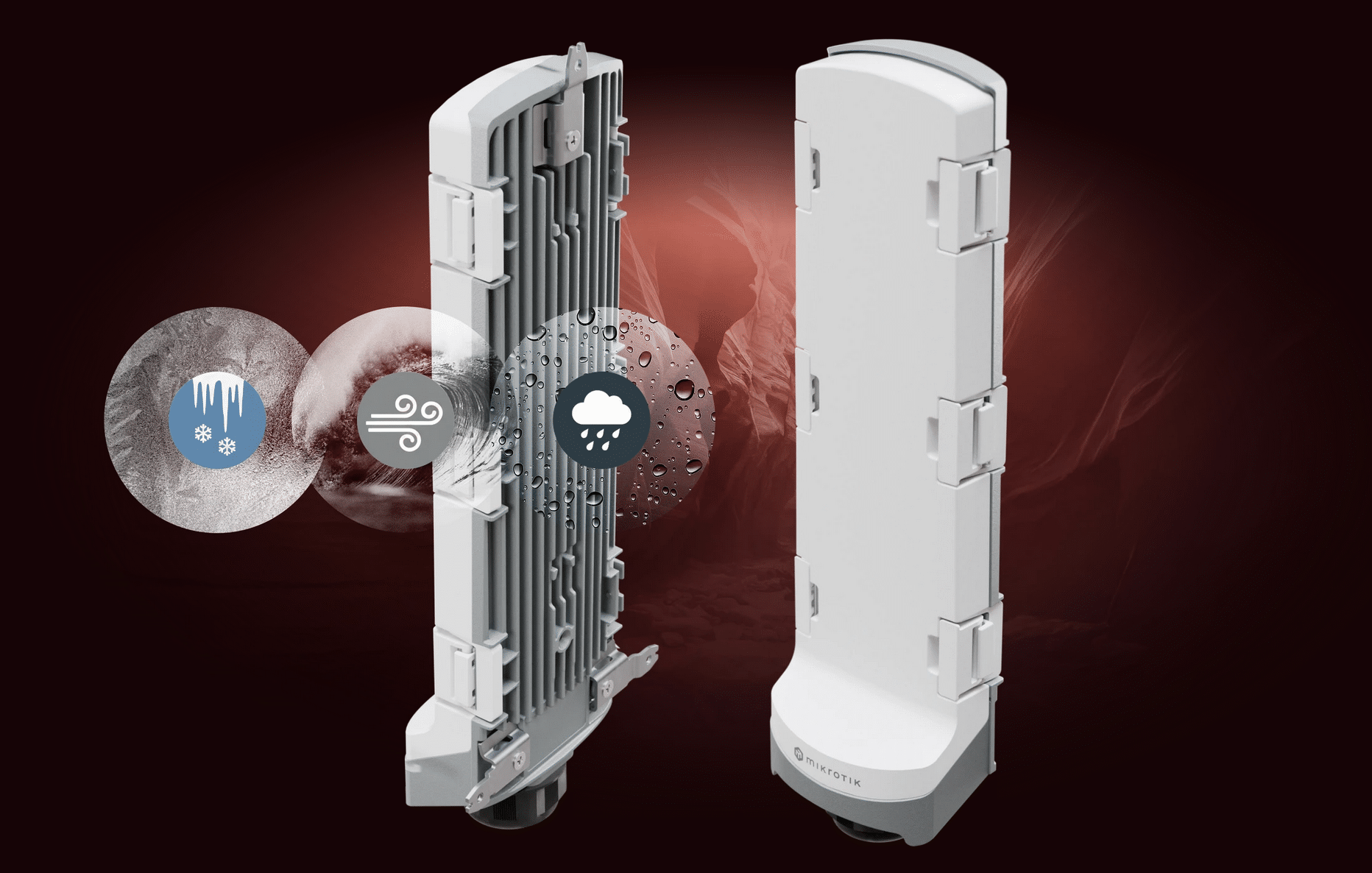

Built for the toughest deployments
he outdoors can be brutal: blistering heat, freezing cold, wind, rain. The elements attack your gear. The wiring is a nightmare. The GPERx6 solves both problems – a rugged, outdoor-ready switch that cuts cable clutter and keeps deployments simple.
Specifications
- Product code CSS606-1G-2Gi-3S+OUT
- Suggested price $139.00
- Switch chip model 88E6193X
- Operating System SwOS
- MTBF Approximately 200’000 hours at 25C
- Tested ambient temperature -40°C to 70°C
Powering
- Number of DC inputs 2 (DC jack, PoE-IN)
- DC jack input Voltage 12-57 V
- Max power consumption 160 W
- Max power consumption without attachments 6 W
- PoE in 802.3 bt
- Cooling type Passive
- PoE in input Voltage 42-57 V
PoE-out
- PoE-out ports Ether2-Ether3
- PoE out Passive PoE up to 57V
- Low voltage PoE-Out current limit 1.2 A
- High voltage PoE-Out current limit 0.625 A
- Max total out (A) 2.4 A
- Total output power 150
Ethernet
- 10/100/1000 Ethernet ports 3
- Number of 1G Ethernet ports with Reverse PoE (PoE-in) 1
- Number of 1G Ethernet ports with PoE-out 2
Fibre
- SFP+ ports 3
Other
- CPU temperature monitor Yes
