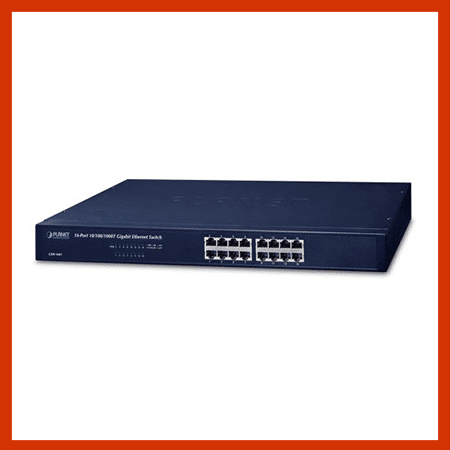

16-Port Gigabit Ethernet Switch

CAD$133.03

PLANET GSW-1601 Gigabit Ethernet Switch provides 16 RJ45 10/100/1000Mbps ports for high-speed network connectivity. It can automatically identify and determine the correct transmission speed and half/full duplex mode of the attached devices with its 16 Gigabit ports that support 9K jumbo frame feature. Therefore, the GSW-1601 can handle extremely large amounts of data transmission in a secure topology linking to a backbone or high-power servers.

In stock

SKU: GSW-1601 Category:

Description

Physical Port

  • 16 10/100/1000BASE-T Gigabit Ethernet ports
  • Supports auto MDI/MDI-X function

Layer 2 Features

  • Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T Ethernet standards
  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • Integrated address look-up engine, supporting 8K absolute MAC addresses
  • 9K jumbo packet support
  • Power saving ability for Green networking
  • IEEE 802.1Q VLAN packet transparency support
  • IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
  • Hardware-based 10/100BASE-TX, half/full duplex and 1000BASE-T full duplex mode, flow control and auto-negotiation
  • Automatic address learning and address aging
  • Supports CSMA/CD protocol

Hardware Features

  • 100~240V AC, 0.5A, 50~60Hz universal power input
  • FCC, CE class A compliant

High Performance

The GSW-1601 provides a high-performance switch architecture that is capable of providing the non-blocking switch fabric and wire-speed throughput as high as 32Gbps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands.  Besides, the Flow Control function of the GSW-1601 enables routers and servers to directly connect to the Switch for fast and reliable data transfer.

All the RJ45 copper interfaces of the GSW-1601 support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cables. It also supports standard for auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.



Excellent Traffic Transmission

The GSW-1601 supports Store-and-Forward forwarding scheme to ensure low latency and high data integrity, which eliminates unnecessary traffic and relieves congestion on critical network paths. With an intelligent address recognition algorithm, the GSW-1601 recognizes up to 8K different MAC addresses. The high data throughput and 32Gbps internal switching fabric make it ideal for most Gigabit environments, especially when network is upgraded to a Gigabit environment.



Fanless Design

With its good ventilation design, the GSW-1601 is able to operate all along without a fan, thus reducing substantial power consumption and creating a noiseless environment. The GSW-1601 is definitely the best choice for any working environment without affecting its performance.

Additional information

Weight 2.8 kg
Dimensions 56 × 30 × 9 cm

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Brochure GSW-1601

Download

Brochure for Planet GSW-1601
