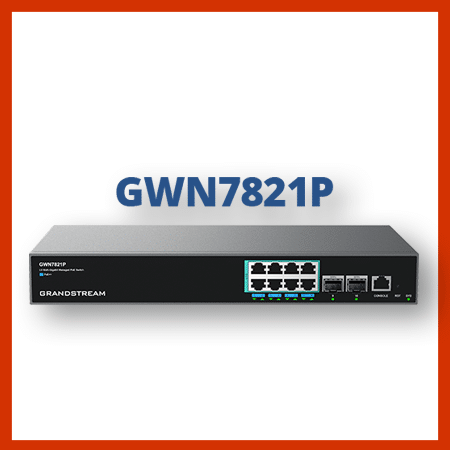

grandstream gwn7821p
Grandstream

GWN7821P

CAD$370.91

Layer 3 Multi-Gigabit Network Switches
The GWN7820P is a Layer 3 multi-gigabit managed PoE switch for medium-to-large enterprises to build  scalable, secure, high performance and smart business networks .

  • GWN7821P: 8x 2.5 Gigabit ports, 2 SFP+ ports
  • Smart power control to support dynamic PoE/PoE+ and PoE++
  • Additionally extra reliability features are also included such as fault detection, device protection, dual boot, dual system file redundancy, link aggregation, storm control, and more.
  • ACL filtering of data packets by configuring matching rules, processing operations, and time schedules, and provides flexible security access control policies
  • Built-in QoS allows for prioritization of network traffic
  • Management options include: Embedded controller; GDMS Networking and GWN Manager, Grandstream’s free cloud and on-premise network management platform; CLI management; GWN router

In stock

Description

Grandstream GWN7821P

Specs
Network Protocols IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af/at/bt, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, IEEE 802.1x
Gigabit Ethernet Ports 8 x 2.5G
SFP+ 10Gigabit Ports 2
PoE Ports 8
Total PoE Output  240W (60W per port)
Total Non-Blocking Throughput 40Gbps
Switching Capability 80Gbps
Forwarding Rate 59.52Mpps
Switching, Routing, and Multicast

•    Supports stacking for easy management of multiple devices on one interface while creating redundant backup between devices

•    16K static, dynamic, and filtering MAC addresses

•    4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN

•   VLAN virtual interface with 9216 MTU

•    Spanning tree, 32 instances for STP/RSTP/MSTP/PVST(+)

•    Static routing

•    Dynamic routing, including RIP, RIPng, OSPF, OSPFv3, BGP and IS-IS(pending)

•    Policy routing

•   IGMP Snooping

•    MLD Snooping

•   MVR
Security

•    User hierarchical management and password protection, HTTPS, SSH, Telnet

•    Identity authentication including 802.1X and MAC authentication

•    AAA authentication including RADIUS, TACACS+

•   Storm control

•    Port isolation, port security, sticky MAC

•    Filtering MAC address

•    IP source guard, DoS attack prevention, ARP inspection

•    DHCP Snooping

•   Loop protection including BPDU protection, root protection and loopback

•    protection

•    Kensington Security Slot (Kensington Lock) support

Additional information

Weight 2.5 kg
Dimensions 42 × 21 × 5 cm
