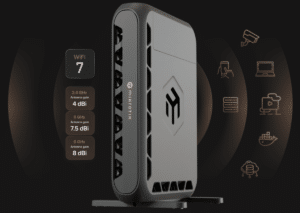

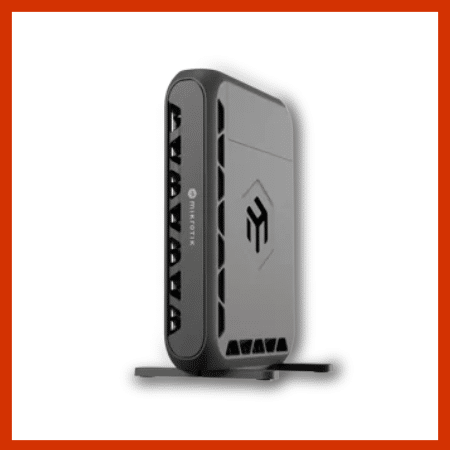

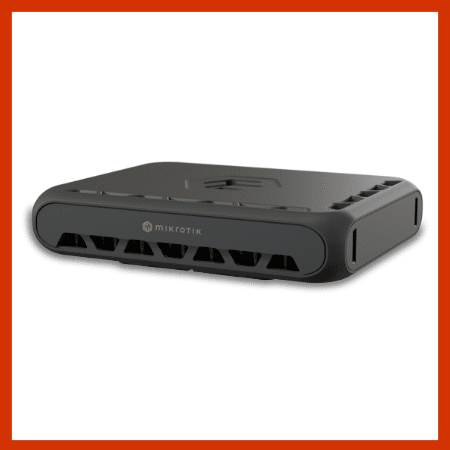

Mikrotik hAP be³ Media
This is a powerful Wi-Fi 7 hybrid router and media hub combining triple-band wireless, five 2.5G Ethernet ports, built-in Matter/Thread smart automation/IoT support, and a quad-core ARM CPU for containers, storage, and advanced networking.
The hAP be³ Media delivers true Wi-Fi 7 performance across the 2.4, 5, and 6 GHz bands.
Expect higher throughput, lower latency, improved security, and better spectral efficiency. The wide 6 GHz band offers more clean spectrum, helping reduce congestion in busy environments. Also, hAP be³ Media supports Wi-Fi 7 Multi-Link Operation (MLO) in TR-MLMR (AP mode).
Whether you are running a multi-device setup, a network lab, workstations, VR headsets, NAS backups, cloud sync, or high-resolution media streaming, everything can run simultaneously without competing for airtime. More bands mean more capacity, smoother performance, and a wireless experience that finally keeps up with modern workloads.
Matter matters
smart Internet-of-things integration has never been easier
With Wi-Fi 7, Bluetooth 5.4, and RouterOS v7, hAP be³ Media provides a solid foundation for modern IoT setups. A built-in Thread radio and full container support allow users to deploy Thread IoT automation solutions that remain local, private, and fully customizable.
Specifications
- Product code MA53UG+HbeH
- Suggested price $179.00
- Architecture ARM 64bit
- CPU IPQ-5322
- CPU core count 4
- CPU nominal frequency Up to 1.5 GHz (auto)
- CPU Threads count 4
- Switch chip model QCA8386
- RouterOS license 6
- Operating System RouterOS v7
- Size of RAM 2 GB
- Storage size 512 MB
- Storage type NAND
- MTBF Approximately 200’000 hours at 25C
- Tested ambient temperature -30°C to 50°C
Wireless capabilities
- Wireless 2.4 GHz Max data rate 688 Mbit/s
- Wireless 2.4 GHz Number of chains 2
- Wireless 2.4 GHz standards 802.11b/g/n/ax/be
- Antenna gain dBi for 2.4 GHz 4
- Wireless 2.4 GHz chip model IPQ-5322
- Wireless 2.4 GHz generation Wi-Fi 7
- Wireless 5 GHz Max data rate 2882 Mbit/s
- Wireless 5 GHz Number of chains 2
- Wireless 5 GHz standards 802.11a/n/ac/ax/be
- Antenna gain dBi for 5 GHz 7.5
- Wireless 5 GHz chip model QCM-8083
- Wireless 5 GHz generation Wi-Fi 7
- WiFi speed BE9300
- Wireless 6 GHz Max data rate 5764 Mbit/s
- Wireless 6 GHz Number of chains 2
- Wireless 6 GHz standards 802.11ax/be
- Antenna gain dBi for 6 GHz 8
- Wireless 6 GHz chip model QXM-8086
- Wireless 6 GHz generation Wi-Fi 7

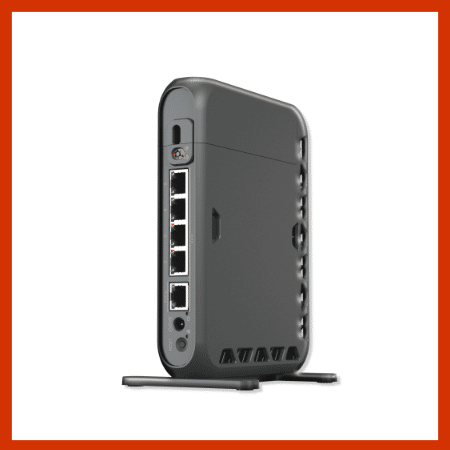

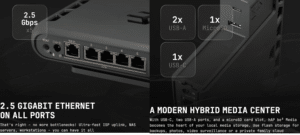

Ethernet
- Number of 2.5G Ethernet ports 5
Peripherals
- Number of USB ports 3
- USB slot type USB 3.0 type A
- Max USB current (A) 1.5
Powering
- Number of DC inputs 2 (DC jack, PoE-IN)
- DC jack input Voltage 24-57 V
- Max power consumption 29 W
- Max power consumption without attachments 20 W
- PoE in 802.3af/at
- Cooling type Passive
- PoE in input Voltage 24-57 V
Certification & Approvals
- Certification CE, FCC, IC, EAC, ROHS
- IP 20
Other
- CPU temperature monitor Yes
- Bluetooth version 5.4
